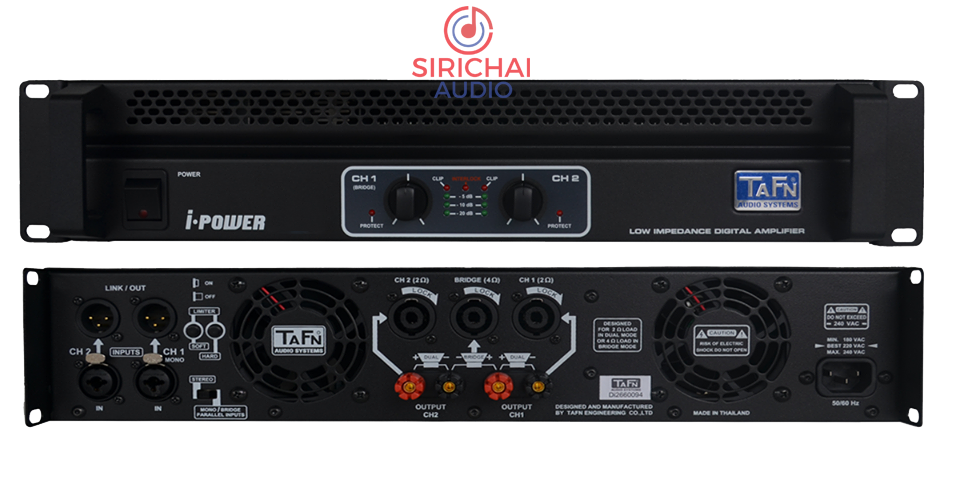

เพาเวอร์ TaFn รุ่น i-POWER

คุณสมบัติสินค้า:

Share

Share

TaFn i-POWER 4000


• ราคาพิเศษ :  25,600 บาท



TaFn i-POWER 5000


• ราคาพิเศษ :  28,500 บาท



TaFn i-POWER 6000


• ราคาพิเศษ :  32,500 บาท

_______________________________________________________



TaFn i-POWER 4000

Specifications

Sensitivity for full rated power
1.4 Volts RMS or 0.775 Volts
Frequency Response 20 Hz to 20 KHz
1dB   at any power level
Signal to Noise ratio 20 Hz to 20 KHz
More than 103 dB
Total Harmonic Distortion (THD)
0.1%
Intermodulation Distortion (IMD)
0.05%
Damping Factor
400 From 20 Hz to 400 Hz.  (at 2 ohms load)
Load Impedance
Safe with all types of loads
Output power stereo mode at  8 ohm      (stereo)
500 + 500 Watts RMS    (both channels driven)
Output power stereo mode at  4 ohm      (stereo)
980 + 980 Watts RMS    (both channels driven)
Output power stereo mode at  2.66 ohm  (stereo)
1450 + 1450 Watts RMS   (both channels driven)
Output power stereo mode at  2 ohm      (stereo)
1800 + 1800 Watts RMS  (both channels driven)
Output power bridged mode at 16 ohm   (mono)
1000 Watts RMS
Output power bridged mode at 8 ohm     (mono)
1960 Watts RMS
Output power bridged mode at 4 ohm     (mono)
3600 Watts RMS
Overload and short-circuit protection system
Current limited controlled by ACC at 45A per CH.
Overheat protection system
Cut-off  at internal 85 Deg.   Resume at 45 Deg.
Power Supply protection
Soft start - Against all severe voltage fluctuations
AC Input Voltage without affecting max. Output Power
200 V - 250 Volts AC.   (when loading 2 ohms)
AC Input Voltage at moderate power operation
140 V - 250 Volts AC.   (when loading 2 ohms)
Dimensions W x D x H
480 x 365 x 88 mm  (2U.  19" Rack mount )
Weight - 10 Kg.

_______________________________________________________________________________

TaFn i-POWER 5000

Specifications

Sensitivity for full rated power
1.4 Volts RMS or 0.775 Volts
Frequency Response 20 Hz to 20 KHz
1dB   at any power level
Signal to Noise ratio 20 Hz to 20 KHz
More than 103 dB
Total Harmonic Distortion (THD)
0.1%
Intermodulation Distortion (IMD)
0.05%
Damping Factor
600 From 20 Hz to 400 Hz.  (at 2 ohms load)
Load Impedance
Safe with all types of loads
Output power stereo mode at  8 ohm       (stereo)
720 + 720 Watts RMS   (both channels driven)
Output power stereo mode at  4 ohm       (stereo)
1400 + 1400 Watts RMS   (both channels driven)
Output power stereo mode at  2.66 ohm  (stereo)
2000 + 2000 Watts RMS   (both channels driven)
Output power stereo mode at  2 ohm       (stereo)
2600 + 2600 Watts RMS   (both channels driven)
Output power bridged mode at 16 ohm   (mono)
1440 Watts RMS
Output power bridged mode at 8 ohm     (mono)
2800 Watts RMS
Output power bridged mode at 4 ohm     (mono)
5200 Watts RMS
Overload and short-circuit protection system
Current limited controlled by AGC at 55A per CH.
Overheat protection system
Cut-off  at internal 85 Deg.   Resume at 45 Deg.
Power Supply protection
Soft start - Against all severe voltage fluctuations
AC Input Voltage without affecting max. Output Power
180 V - 250 Volts AC.   (when loading 2 ohms)
AC Input Voltage at moderate power operation
140 V - 250 Volts AC.   (when loading 2 ohms)
Dimensions W x D x H
480 x 400 x 88 mm  (2U.  19" Rack mount )
Weight  -11 Kg.

______________________________________________________________________________

TaFn i-POWER 6000

Specifications

Sensitivity for full rated power
1.4 Volts RMS or 0.775 Volts
Frequency Response 20 Hz to 20 KHz
1dB   at any power level
Signal to Noise ratio 20 Hz to 20 KHz
More than 103 dB
Total Harmonic Distortion (THD)
0.1%
Intermodulation Distortion (IMD)
0.05%
Damping Factor
600 From 20 Hz to 400 Hz.  (at 2 ohms load)
Load Impedance
Safe with all types of loads
Output power stereo mode at  8 ohm      (stereo)
1000 + 1000 Watts RMS    (both channels driven)
Output power stereo mode at  4 ohm      (stereo)
2000 + 2000 Watts RMS    (both channels driven)
Output power stereo mode at  2.66 ohm  (stereo)
3000 + 3000 Watts RMS    (both channels driven)
Output power stereo mode at  2 ohm      (stereo)
3600 + 3600 Watts RMS    (both channels driven)
Output power bridged mode at 16 ohm   (mono)
2000 Watts RMS
Output power bridged mode at 8 ohm     (mono)
4000 Watts RMS
Output power bridged mode at 4 ohm     (mono)
7200 Watts RMS
Overload and short-circuit protection system
Current limited controlled by ACC at 65A per CH.
Overheat protection system
Cut-off  at internal 85 Deg.   Resume at 50 Deg.
Power Supply protection
Soft start - Against all severe voltage fluctuations
AC Input Voltage without affecting max. Output Power
200 V - 250 Volts AC.   (when loading 2 ohms)
AC Input Voltage at moderate power operation
140 V - 250 Volts AC.   (when loading 2 ohms)
Dimensions W x D x H
480 x 438 x 88 mm  (2U.  19" Rack mount )
Weight - 12.9 Kg.
