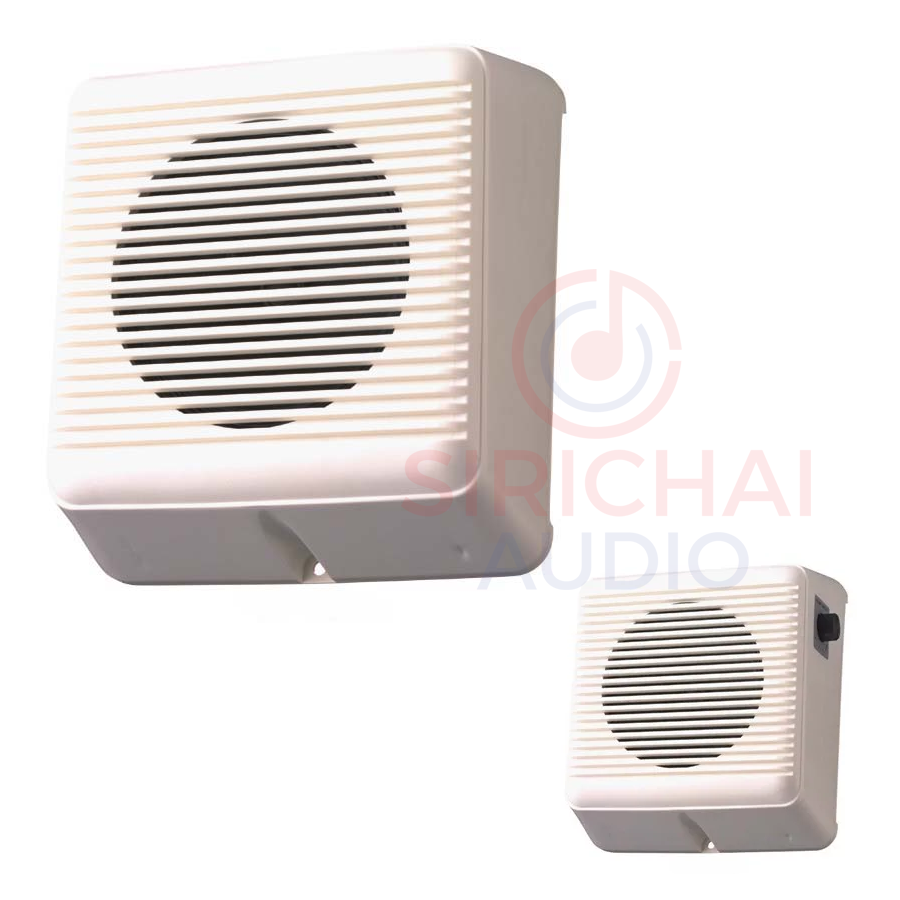

ลำโพงติดผนัง TOA รุ่น BS-633

คุณสมบัติสินค้า:

TOA BS-633A BS-633AT

Share

Share

TOA BS-633

ลำโพงติดผนัง 5 นิ้ว 6W/LINE 100V มีตัวปรับโวลุ่ม

SPEC

• Rated Input 6 W (100 V line), 3 W (70 V line)

Rated Impedance

• 100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
• 70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
• Sensitivity 91 dB (1 W, 1 m)
• Frequency Response 120 - 15,000 Hz (-20 dB)
• Speaker Component 12 cm (5) cone-type

Applicable Cable

• 600 V vinyl-insulated cable (IV wire or HIV wire)
• Solid copper wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
• 7-core twisted copper wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)
• Connection Push-in connector (bridging terminal)

Attenuation Level

• 3 W: OFF, 1 (-12 dB), 2 (-6 dB), 3 (0 dB)
• 6 W: OFF, 1 (-13 dB), 2 (-7 dB), 3 (0 dB)
• Operating Temperature -10℃ to +50℃ (14゜F to 122゜F)

Finish

• Case: ABS resin, off-white
• Rear board: Hard board
• Dimensions 173 (W) × 195 (H) × 101 (D) mm (6.81 × 7.68 × 3.98)

Wall Mounting Dimensions

• Case front mount: 184 mm (7.24)in
• Fixing hole mount: 120 mm (4.72)in
• Weight 810 g (1.79 lb)
