ชุดเครื่องเสียงเคลื่อนที่ PEAVEY AUDIO PERFORMER PACK

คุณสมบัติสินค้า:

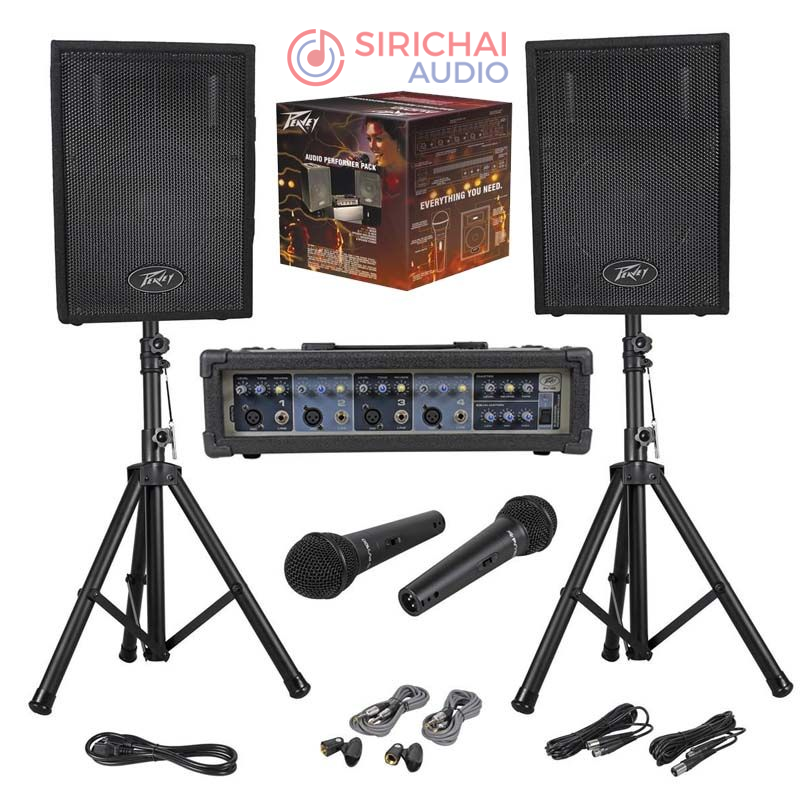

เครื่องเสียงพกพา PEAVEY Audio Performer Pack ประกอบด้วยเพาเวอร์มิกเซอร์ PVi 4B 1ตัว ,ลำโพง PVi 10 1คู่, ไมโครโฟน PVi 100 2ตัว, ขาตั้งลำโพงและสายไมค์

Share

Share

ชุดเครื่องเสียงเคลื่อนที่ PEAVEY AUDIO PERFORMER PACK

เครื่องเสียงพกพา PEAVEY Audio Performer Pack



ประกอบด้วย

• เพาเวอร์มิกเซอร์ PVi 4B (1เครื่อง)

• ลำโพง PVi 10 (1คู่)

• ไมโครโฟน PVi 100 (2ตัว)

• ขาตั้งลำโพงและสายไมค์


The PEAVEY Audio Performer Pack, a complete P.A. system that packages the new PVi™ 4B powered mixer with PV® Series microphones, loudspeakers and accessories. The Audio Performer Pack brings ease of use and powerful sound to small performances and multi-purpose use in schools, churches and virtually any intimate speaking or entertainment application. The rugged, powered PVi 4B mixer features rotary controls to adjust level, reverb and tone on each channel and the master section, with a built-in power amp rated at 100 watts RMS into 4 ohms.

Its feature set also includes four balanced microphone and ¼” TRS inputs, tape/CD input with level control, a line out for connection to external amplifiers and a record output. Rounding out the all-in-one P.A. solution are two PVi 100 dynamic cardioid microphones, two PVi 10 premium loudspeaker enclosures, a pair of adjustable speaker stands and cables for the microphones and speakers. The extensive PV Series product line includes every link in the audio chain, from loudspeakers, mixers and power amplifiers to processors, cables, microphones and accessories.

The Peavey Audio Performer Pack will be available from authorized Peavey retailers in Q4 2006. Features * PVi 4B powered mixer * Two PVi 10 speakers * Two PVi 100 dynamic cardioid microphones * Two speaker stands * Cables

Features:

Two PVi® 10 10″ speaker enclosures
Two PVi® 100 dynamic cardioid microphones
Two speaker stands
Includes PVi® 4B mixer
Weight Packed: 81.00 lb(36.74 kg)
Width Packed: 21″(53.34 cm)
Height Packed: 28.5″(72.39 cm)
Depth Packed: 20.75″(52.705 cm)


Specifications


PVi® 4B mixer

Mic/Line Inputs
4 Balanced XLR microphone and 1/4″ line inputs
Stereo Line Inputs
1
AUX Sends
1
Monitor Outputs
1 monitor out, stereo RCA record out
EQ Section
2-band EQ on every channel
Effects
Built-in digital reverb
Trim/Gain Control
4 mic channels with preamps
Phantom Power
No
Metering
None
Frequency Response
Not specified by manufacturer
Total Harmonic Distortion (THD)
Not specified by manufacturer
Signal to Noise Ratio
Not specified by manufacturer
Dimensions
5 3/4 x 19 7/16 x 9 1/2″ (14.6 x 49.4 x 24.1 cm)
Weight
18 lbs (8.2 kg)

PVi® 10 10″ speaker enclosures

Frequency Range
85 Hz to 20 kHz, (-10 dB, half space)
Sensitivity
90 dB, (1 W/1 m)
Power Rating
50 W (program)
Power Capacity
100 W
Maximum SPL
109 dB (100 W)
Transducer
Transducer Complement:
10″ (254 mm) woofer
High frequency driver on an exponential horn
Nominal Impedance
8 Ω
Input Connections
2x 1/4″ (6.3 mm) in parallel
Enclosure Material
Trapezoidal, carpet covered enclosure and a full length powder-coated steel grille
Dimensions (HxWxD)
18.75 x 13.5 x 10.25″ (47.6 x 34.3 x 26.0 cm)
Weight
18.2 lb (8.3 kg)


PVi® 100 dynamic cardioid microphones

Transducer
Dynamic
Polar Pattern
Cardioid


Speaker Stands

Load Capacity
100 lb (45.4 kg)
Height Adjustment
64 – 77″ (1.6 – 1.95 m)
Weight
5.2 lb (2.35 kg)
