1020 วัตต์ มีแอมป์ในตัว คลาส D
หมวดหมู่ : ลำโพง ,  ตู้ลำโพงซับเบส ,  ลำโพง ACTIVE ,
Share
https://th.yamaha.com/th/products/proaudio/speakers/dxs/index.html

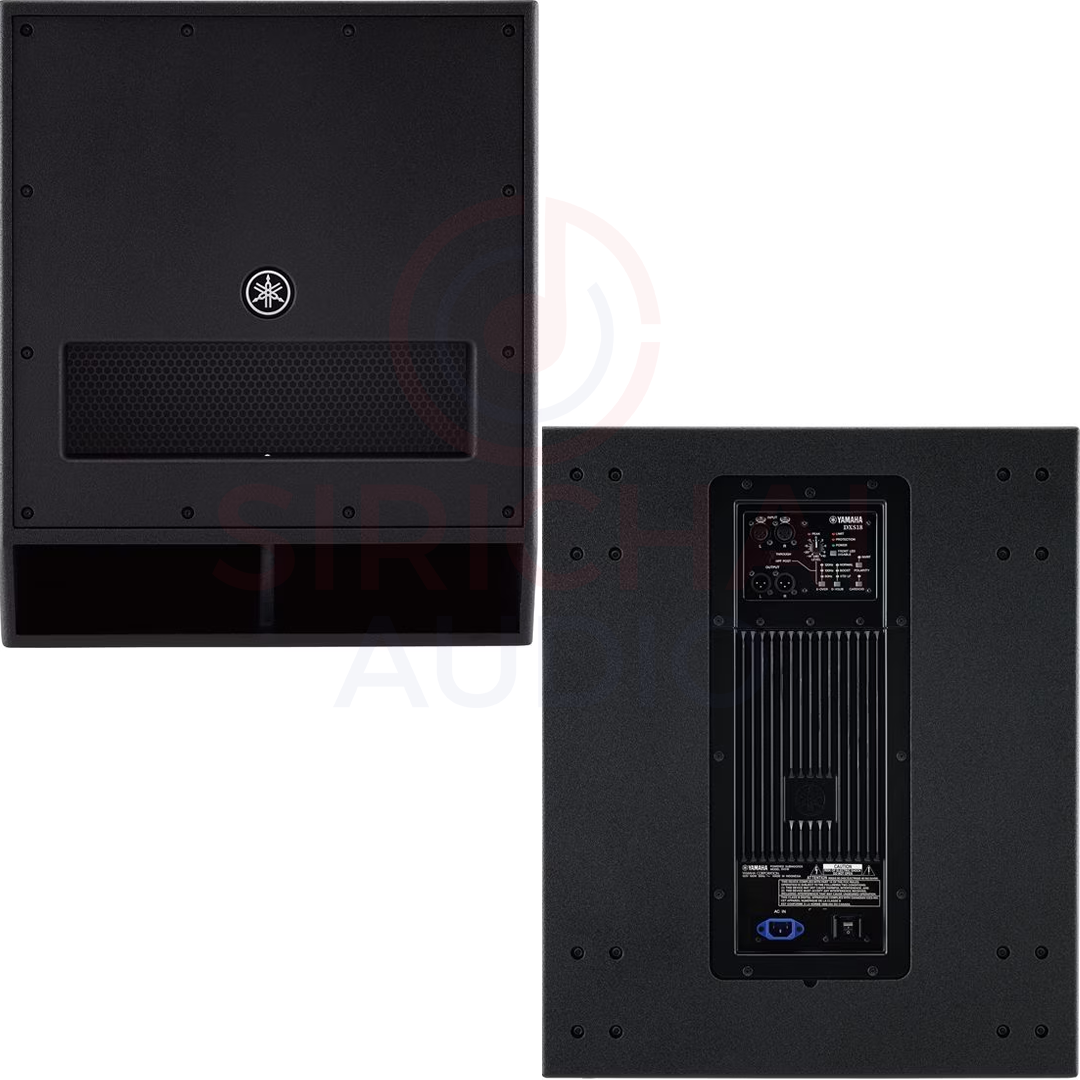

YAMAHA DXS18
DXS18
DXS12mkII
General specifications
Speaker type
18″ Powered subwoofer, Band-pass type
12″ powered subwoofer, Band-pass type
Frequency range (-10dB)
32Hz – 120Hz
42 Hz – 150 Hz
Components
LF
18″ cone, Voice Coil:4″
12″ cone, 2.5″ voice coil
Output power
Dynamic:1020W / Continuous: 800W
Dynamic:1020W / Continuous: 800W
Maximum output level (1m; on axis)
136dB SPL
134 dB SPL
I/O connectors
INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT)
Processors
D-XSUB: BOOST, XTD LF, NORMAL
D-XSUB: BOOST,XTENDED-LF, OFF
Cooling
Natural convection
Natural convection
Power requirements
100V – 240V, 50Hz/60Hz
100V – 240V, 50Hz/60Hz
Power consumption
100W
100W
Pole socket
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions
W
563mm (22.2″)
400 mm (15.75″)
H
683mm (26.8″)
567 mm (22.32″)
D
721mm (28.4″)
570 mm (22.44″)
Net weight
49.7kg (110lbs)
30.0 kg (66.1lbs)
Others
Material: Plywood (LINE-X®, Black)
Material, Finish, Color: Meranti Plywood, Durable Polyurea Coating, Black
