เครื่องขยายเสียง WiiM Amp Pro

  WiiM Amp ที่มีตัวเครื่องอลูมิเนียมดีไซน์เรียบหรูให้ตัวเลือกการวางที่หลากหลาย ภายในประกอบด้วยส่วนประกอบระดับพรีเมียมและวงจรที่ทันสมัยเพื่อให้การขยายเสียงที่ทรงพลังและคมชัด ฮีทซิงค์ที่ออกแบบมาเฉพาะช่วยให้การระบายความร้อนทำงานได้อย่างมีประสิทธิภาพ อย่าหลงเชื่อในดีไซน์ที่กะทัดรัด – มันมีพลังขับที่ 60 วัตต์ต่อช่องที่ 8 โอห์ม และ 120 วัตต์ต่อช่องที่ 4 โอห์ม เปลี่ยนลำโพงพาสซีฟของคุณไม่ว่าจะเป็นลำโพงตั้งพื้น ลำโพงฝังผนัง ลำโพงกลางแจ้ง หรือ ลำโพงขนาดเล็กให้กลายเป็นเครื่องเสียงอัจฉริยะที่มีพลัง

Highlights



• Powerful streaming amplifier for audio enthusiasts

• Supports Wi-Fi 6E and Bluetooth 5.3 with BT LE audio

• Voice control with Alexa, Google Assistant, and Siri

• Hi-Res audio streaming from popular music apps

• Premium 32-bit/384kHz ES9038 Q2M SABRE DAC

• Built-in room correction

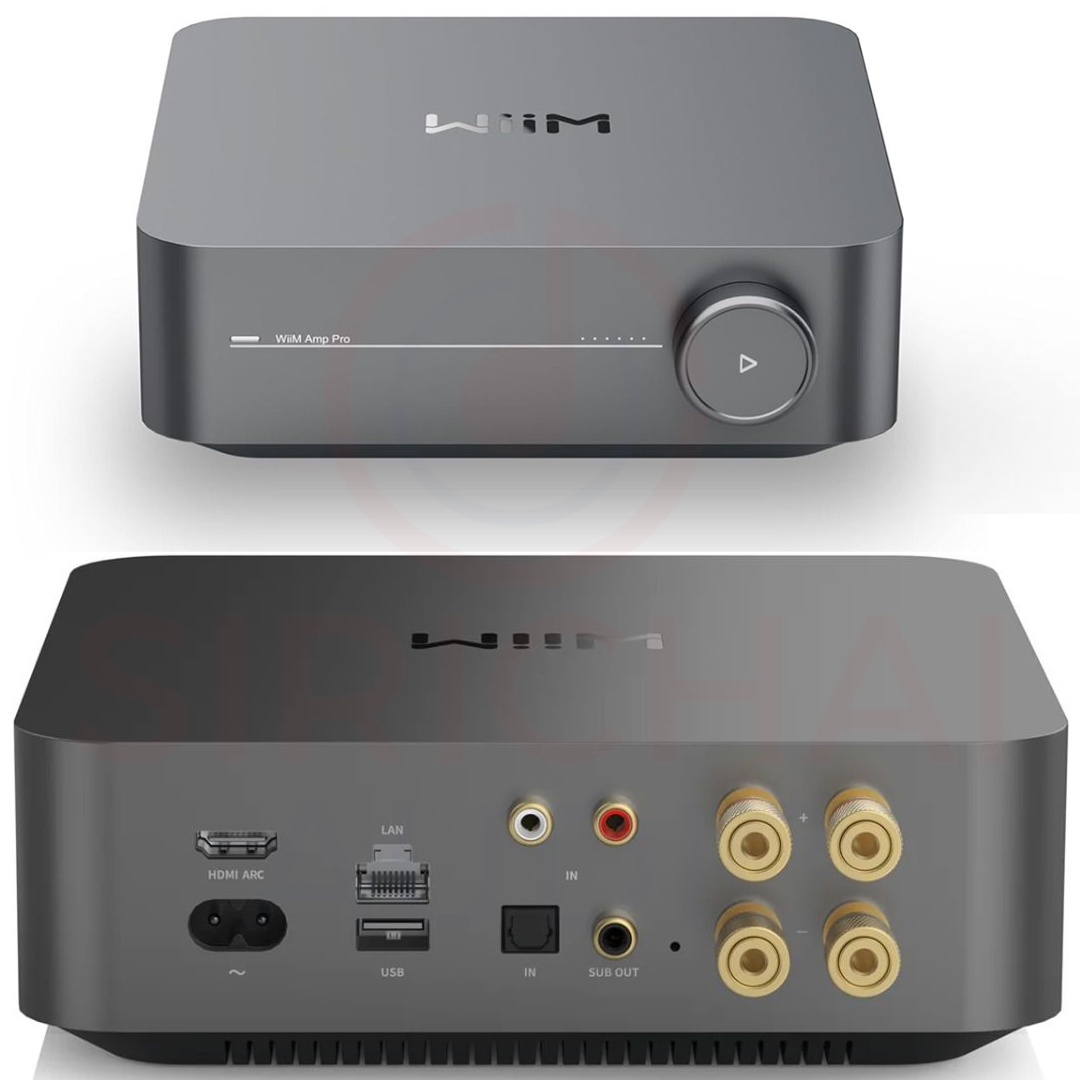

WiiM Amp Pro



The WiiM Amp took music and movie enthusiasts worldwide by storm when the well-performing and compact streaming amplifier was launched at such a low price point that it was almost unbelievable.



Now, the WiiM Amp Pro takes it to the next level, featuring advanced Post Filter Feedback (PFFB) technology, a new TI TPA3255 Class-D amplifier, and the fantastic Premium ES9038 Q2M SABRE DAC, offering incredibly low distortion and a vast dynamic range. WiiM Amp Pro retains the sleek aluminum chassis and delivers 2x 60W at 8 Ohms and 2x 120W at 4 Ohms.



The WiiM Amp Pro also supports Bluetooth streaming and a wide range of streaming services like Spotify, Tidal, Deezer, and internet radio. It even offers voice control with Google Assistant, Amazon Alexa, or Siri. WiiM Amp Pro is equipped with the latest Wi-Fi 6E and Bluetooth 5.3 technology with BT LE audio support, ensuring a stable wireless connection even for the most demanding Hi-Res streaming tasks.



To maximize the overall sound experience and unlock the full potential of your speakers, WiiM Amp Pro also comes with advanced room correction, making it easier than ever to calibrate your setup.



Specifications:



• 2x 60W (8 ohms), 2x 120W (4 ohms)

• Inputs: HDMI Arc, Optical, Line

• Outputs: Subwoofer

• Dimensions: 19 cm x 19 cm x 6.3 cm • Weight: 1.86 kg

Audio Amplification
TI TPA3255
Main Purpose
Connected to passive speaker for streaming
Pair with a Sub
Y
USB Port (Storage/Audio Out)
Y
Wireless Connectivity
Wi-Fi 6, BT 5.3
(Will be upgraded to Wi-Fi 6E via software update.)
Ethernet
Y
DAC IC
ESS ES9038 Q2M
Analog Out SNR
120 dB
THD+N (Analog Out)
-105 dB (0.0005%) at 5W
Analog Input (ADC)
Up to 192k, 24 bit
Google Cast Audio
Y
Group with Nest speakers and Display
Y
Group with Echo speakers and Display
Y
Alexa Multiroom with UHD
Y
Group with HomePods
-
Works with Alexa
Y
Works with Google
Y
Works with Siri
-
Group with WiiM or Linkplay devices
Y
AirPlay 2
-
2-Way Bluetooth
Y
Roon Ready
Y
DLNA
Y
Spotify Connect & TIDAL Connect
Y
Gapless Playback
Y
10-band Graphics EQ
Y
Linkplay Music Streaming Platform
Y
CPU
Quad Core A53
DRAM
512 MB
Flash
512 MB
Audio Input Port
Line, Optical, HDMI ARC, USB Disk
Audio Output Port
Banana (x2), Subwoofer, USB


Small Yet Mighty
Housed in a sleek aluminum shell, the compact WiiM Amp offers versatile placement options. Inside, premium components and innovative circuitry ensure robust, crystal-clear amplification. A custom-designed heatsink ensures optimal thermal performance. Don't let its compact design fool you – it packs 60 Watts per channel at 8 ohms, and 120 Watts per channel at 4 ohms. Transform your passive speakers including floor-standing, architectural, outdoor, or bookshelf, into smart audio powerhouses.

Stream Everything
You Love
Streamline your sonic exploration with the WiiM Home app. Say goodbye to app-hopping; this all-in-one interface connects you to a plethora of popular music streaming services like Spotify, iHeartRadio, Tidal, Amazon Music, Qobuz, Napster, Pandora, TuneIn, Deezer, and more.

Does It All Like Magic
Master your audio universe with the WiiM Home App. Stream from top music services and manage your system effortlessly, room by room. Adjust volume, sync speakers, save favorites, set alarms, and tweak settings—all in one place. Prefer your go-to music app? No problem, play straight from it. Plus, go hands-free with voice commands. Whether you're using Alexa, Google Assistant, or Siri, control is just a word away, even with the included voice remote.

Your Music Library
Everywhere
Plug your USB disk into the WiiM Amp and transform your home into a personal concert hall. Stream your digital music collection in studio-quality to multiple WiiM devices throughout your space. The WiiM Amp not only indexes your music library but also serves as an always-on media server, making your personal tunes accessible anytime, anywhere in your home.

Tailor-Made Audio
Endless Possibilities
Unlock a world of sound customization with the WiiM Amp. Whether you're integrating ceiling speakers, reviving vintage audio gear, or optimizing your TV's sound, our robust suite of EQ options has you covered. Choose from 24 preset settings, fine-tune with a 10-band graphic EQ, or dive deep with a 10-band parametric EQ—all easily accessible in the app. Plus, enjoy the freedom to set independent EQ profiles for each input source, be it HDMI, Optical, Line, BT, or Network. Craft your perfect audio landscape, room by room, source by source.

Seamless Voice Control with 360° Bluetooth Remote
Experience effortless control over the WiiM Amp via the Bluetooth remote, featuring built-in Alexa for voice commands. Navigate without any barriers, and easily perform actions like play, pause, track skipping, volume adjustments, and muting. Plus, enjoy one-tap access to your favorite content through customizable presets.

Superior Sound Quality
Experience sound like never before with the WiiM Amp. Our rigorous audio tests show that it delivers a stunningly clear and rich audio experience. With a Total Harmonic Distortion + Noise (THD+N) of just 0.002% (-93 dB) and 98 dB SNR at 5W, it's nearly flawless—meaning you hear the music exactly as the artist intended, without any distracting noise or distortion. Whether you're a casual listener or an audiophile, the WiiM Amp elevates your audio experience to new heights.

Home Theater Magic, Simplified
Elevate your entertainment experience effortlessly with the WiiM Amp's HDMI ARC port. Plug in your TV and immerse yourself in rich stereo sound for shows, movies, and video games. Craving that extra oomph? Simply add a powered subwoofer to take your audio to cinematic levels. With minimal setup required, the WiiM Amp offers a seamlessly integrated AV system that turns your living room into a home theater paradise.
