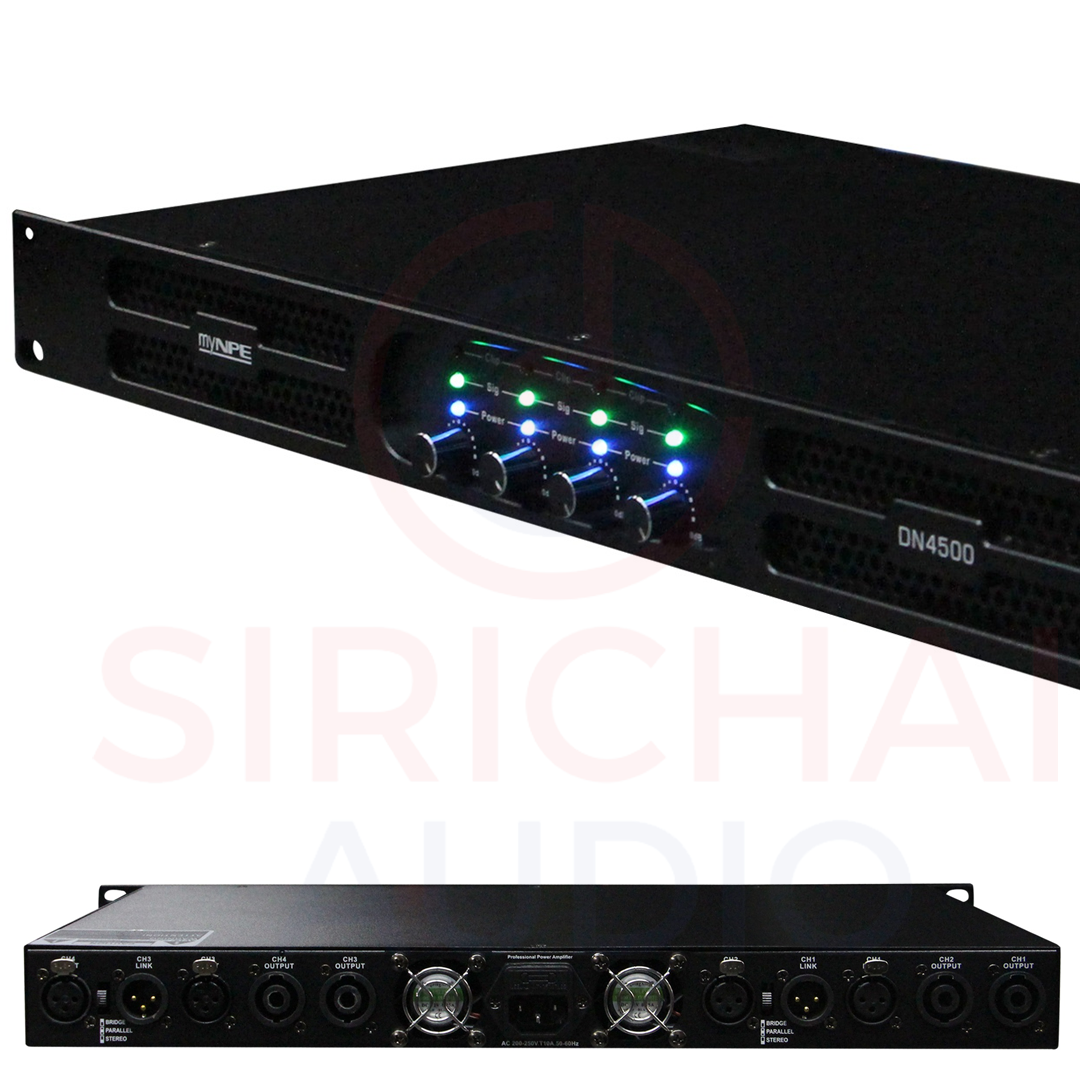

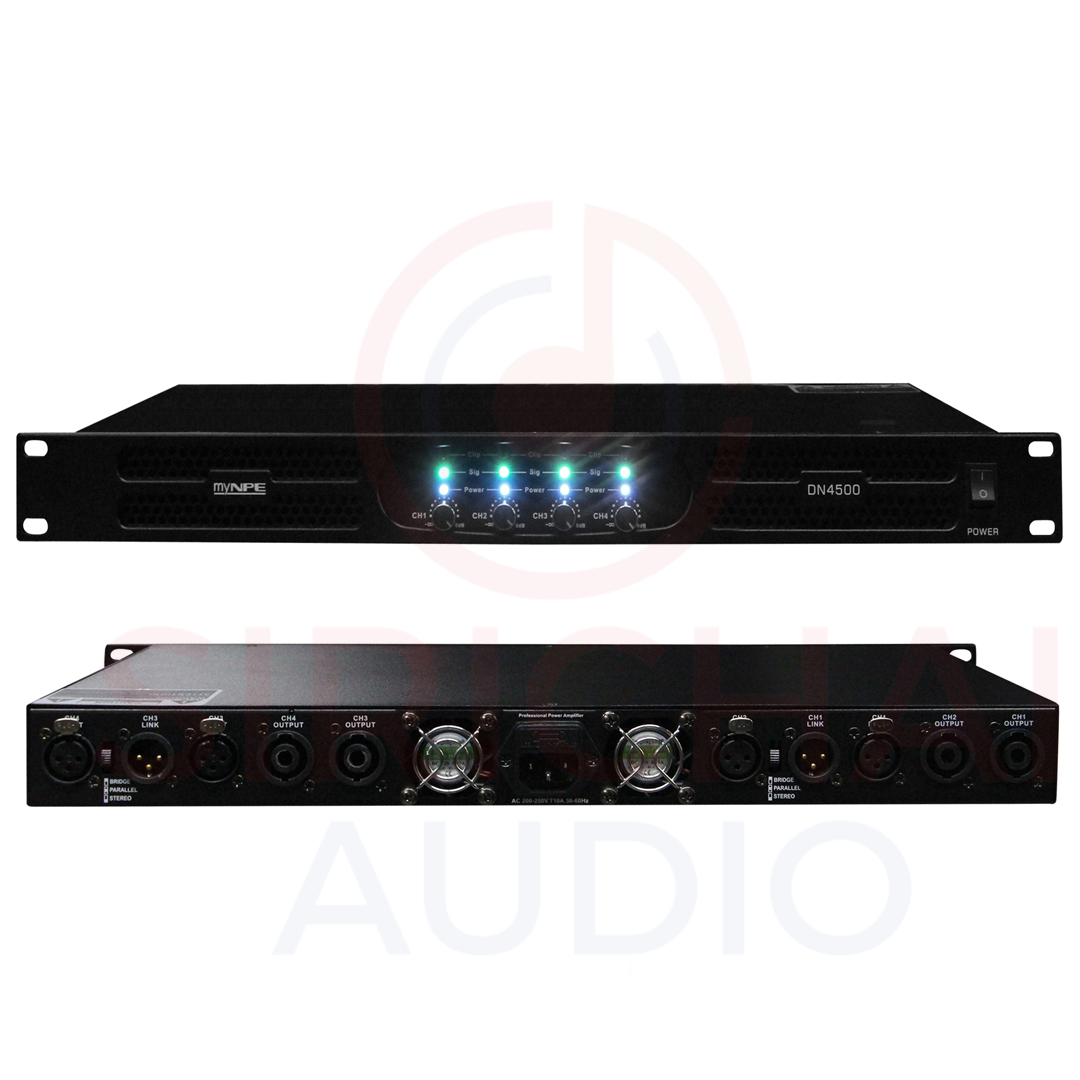

เครื่องขยายเสียง4ชาแนล NPE รุ่น DN4500

MYNPE DN-4500

poweramp 1U 4CH

Power Amplifier myNPE DN4500

• Class D (1U) 4 CHANNEL
• กำลังขับ 4x500 Wrms @ 8 โอห์ม
• กำลังขับ 4x1000 Wrms @ 4 โอห์ม
• กำลังขับ 1200 Wrms @ Bridged
• Freq: 20Hz-20kHz

Specification

Model Name DN 4500

FTC:20 Hz to 20 kHz 1% THD 8 ohms. 4x500W
Both channels driven 4 ohms 4x1000W
Bridged Mode at 1% THD 8 ohms, 1 kHz 2x1200W

Input Sensitivity for rated power into 8 ohms 1.25V

Input Impedance 20 k ohm balanced, 10 k ohm unbalanced

Voltage Gain 64x(36 dB)for 8 ohm load

Dynamic Headroom at 4 ohms 2 dB

Distortion, SMPTE <0.02%

Frequency response at 1 watt 20 Hz to 20 kHz, 8 ohms, LF Filter By passed: ±3 dB

Noise (unweighted) 100 dB below rated output from 30 Hz to 20 kHz, 8 ohm load

Controis Front panel-AC power switch, CHA Gain control, CHB Gain control, Clip Limiter On/off controls for each channel and switches for selecting Stereo or Bridge Mode Breaker for channel.

Connectors Inputs: XLR female, TRS (1/4-inch); Outputs: Speakon outputs

Load Protection 1000V or 220 Volts AC/50-60 Hz

Dimensions (W*D*H) 482*230*50mm

Weight (kg) 4.2kg

Weight (kg) packing 5.4kg
