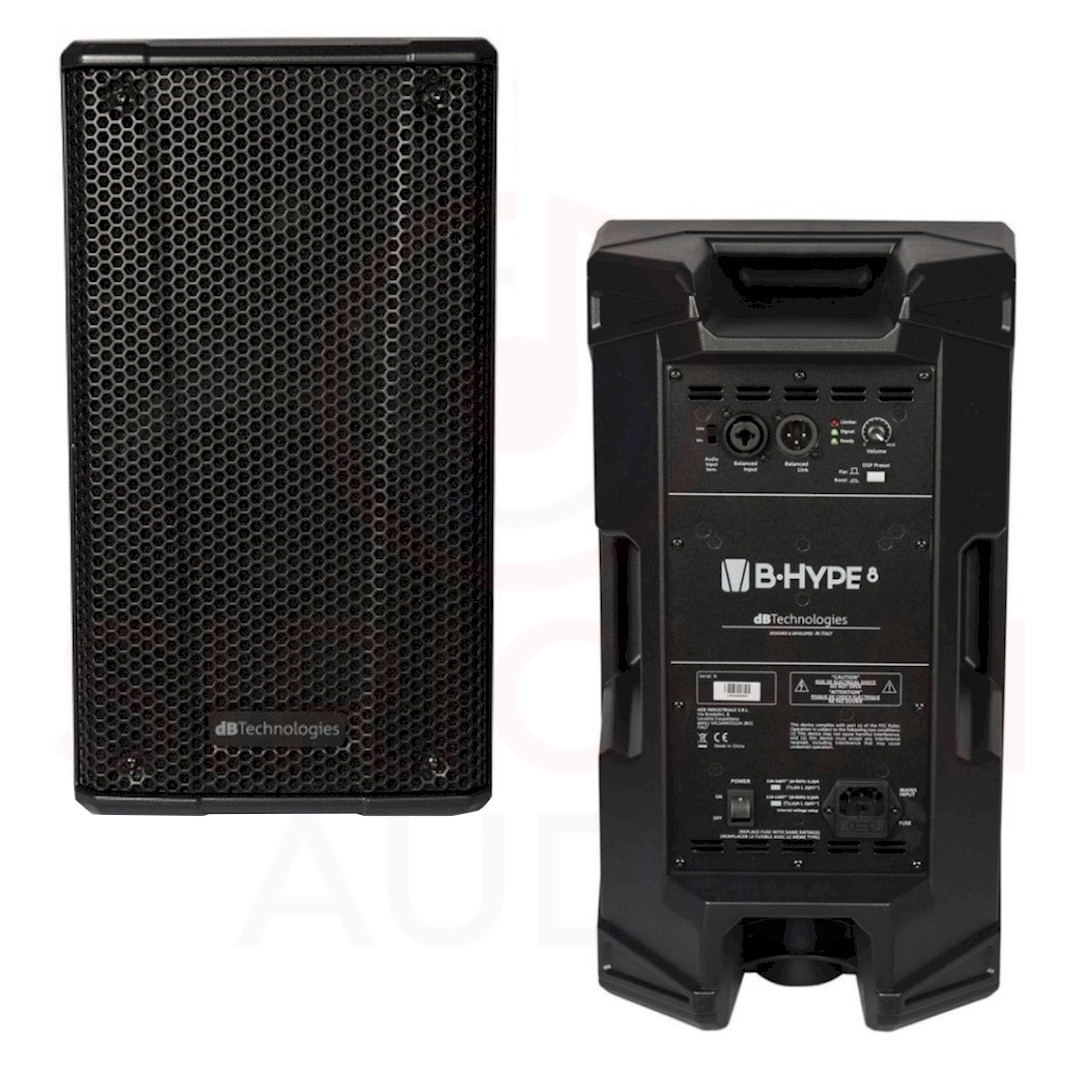

ลำโพง8นิ้ว active dBTechnologies รุ่น B Hype 8

B-Hype 8

Technical Data

Speaker Type : 2-Way Active Speaker
Acoustical data

Usable Bandwidth [-10dB] : 65 – 20.000 Hz
Frequency Response [-6 dB] : 70 – 19.600 Hz
Max SPL : 120 dB
Type HF : Compression Driver
HF voice coil : 1 “
LF : 8 “
LF voice coil : 1.5 “
Crossover Frequency : 2300 Hz (24 dB/oct.)
Horizontal Dispersion : asymmetrical 85° up / 120°down
Vertical Dispersion : 85° (+25/ -60°)

Amplifier

Amp Technology : Custom Made
Amp Class : Class D – Passice cooling (convection)
Power Peak : 260 W

Processor

Controller : DSP 28/56 bit- 48 kHz
Limiter : Peak, RMS, Thermal
Controls : Volume, Audio Input Sensitivity, DSP Preset

Input

Main Connection : VDE
Signal Input : Balanced 1xCombo IN (MIC/LINE)
SIGNAL Out : (Balanced) 1xXLR OUT (LINK)

Mechanics

Housing : Polypropylene
Grille : Full Metal Grille
Handles : 3 (2 on side 1 on top)
Pole Mount : 36 mm
Width : 243 mm (9.57 in)
Height : 443mm (17.44 in)
Depth : 231 mm (9.09 in)
Weight : 6.6 kg (14.55 lbs)
Angles Up : Double wedge angle 45°
