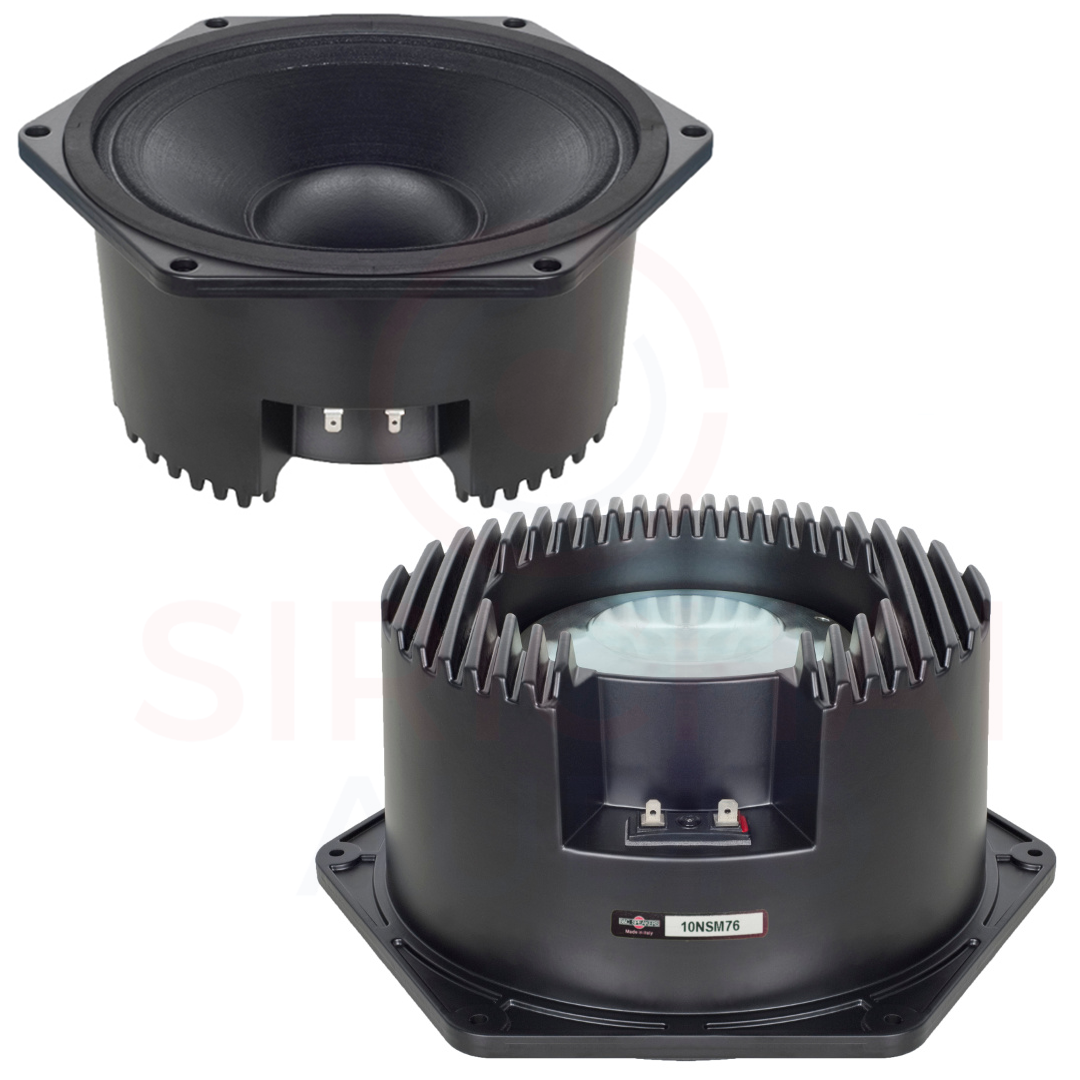

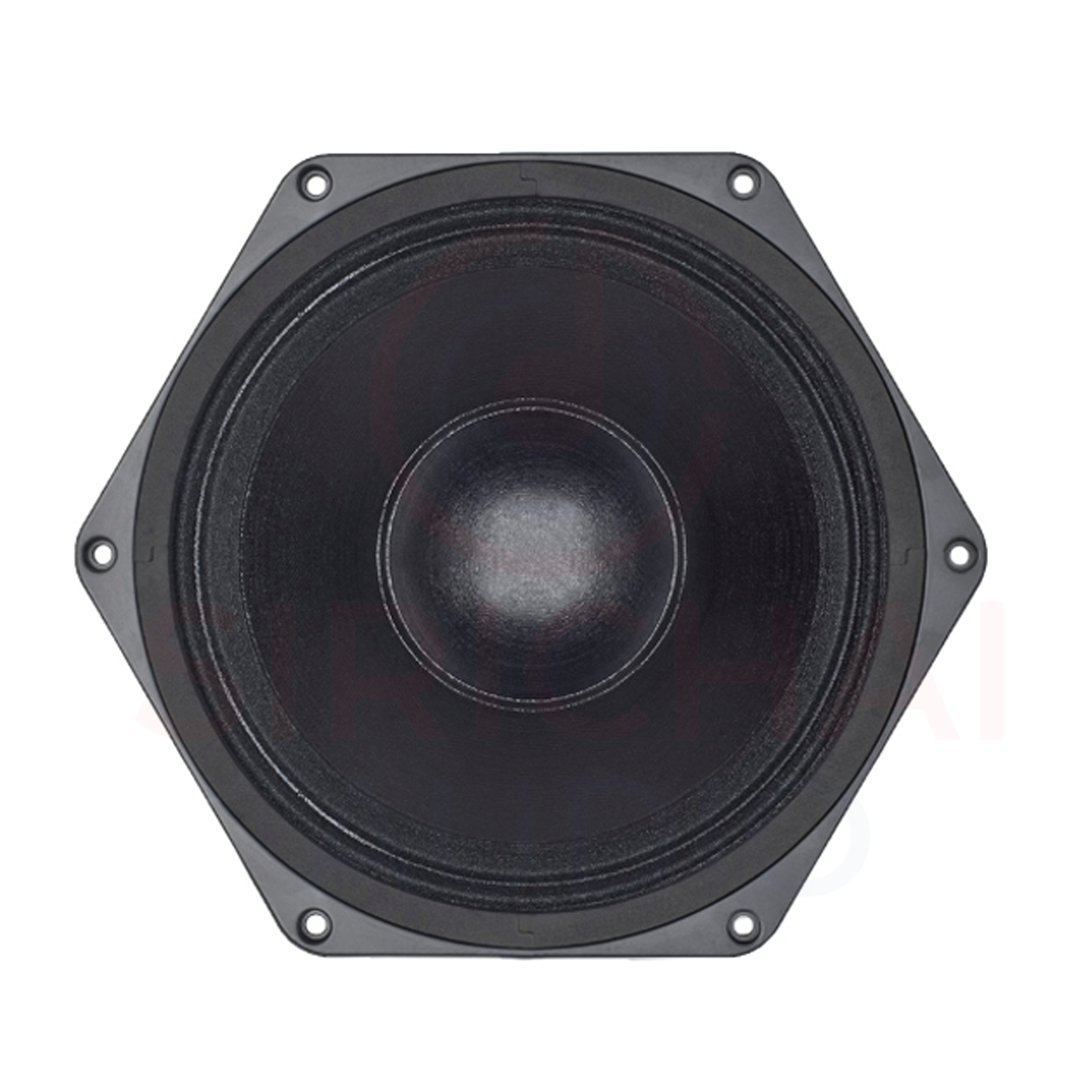

ดอกลำโพง B&C รุ่น 10NSM76

Magnet Material

Neodymium Ring
Voice Coil Diameter

76 mm (3 in)
Continuous Power Handling

800 W
Sensitivity

100 dB

Specifications

Nominal Diameter
250 mm (10 in)
Minimum Impedance
7 Ω
Continuous Power Handling
800 W
Frequency Range
235 Hz - 3500 Hz
Winding Material
Aluminium
Winding Depth
11 mm (0.45 in)
Flux Density
1.6 T
Nominal Impedance
8 Ω
Nominal Power Handling
400 W
Sensitivity
100 dB
Voice Coil Diameter
76 mm (3 in)
Former Material
Glass Fibre
Magnetic Gap Depth
9 mm (0.35 in)
Woofer Cone Treatment
WP Waterproof Front Side
Parameters
Fs
235 Hz
Qes
0.55
Qts
0.52
Sd
320 cm² (49.6 in²)
Xmax
3.5 mm
Mms
33 g
Le
0.9 mH
Re
5.2 Ω
Qms
8.6
Vas
2 dm³ (0.07 ft³)
η0
4.5 %
Xvar
3.5 mm
Bl
21.5 Tm
EBP
427 Hz
Design
Surround Shape
Accordion
Magnet Material
Neodymium Ring
Pole Design
T-Pole
Cone Shape
Radial
Spider
Single
Woofer Cone Treatment
WP Waterproof Front Side
Mounting and Shipping Info
Overall Diameter
291 mm (11.46 in)
Baffle Cutout Diameter
234 mm (9.21 in)
Flange and Gasket Thickness
12 mm (0.47 in)
Net Weight
4.55 kg (10.03 lb)
Shipping Weight
5.45 kg (12.02 lb)
Bolt Circle Diameter
274 mm (10.79 in)
Depth
130 mm (5.12 in)
Air Volume Occupied by Driver
5 dm³ (0.18 ft³)
Shipping Units
1 pcs
Shipping Box
360x360x200 mm (14.17x14.17x7.87 in)
