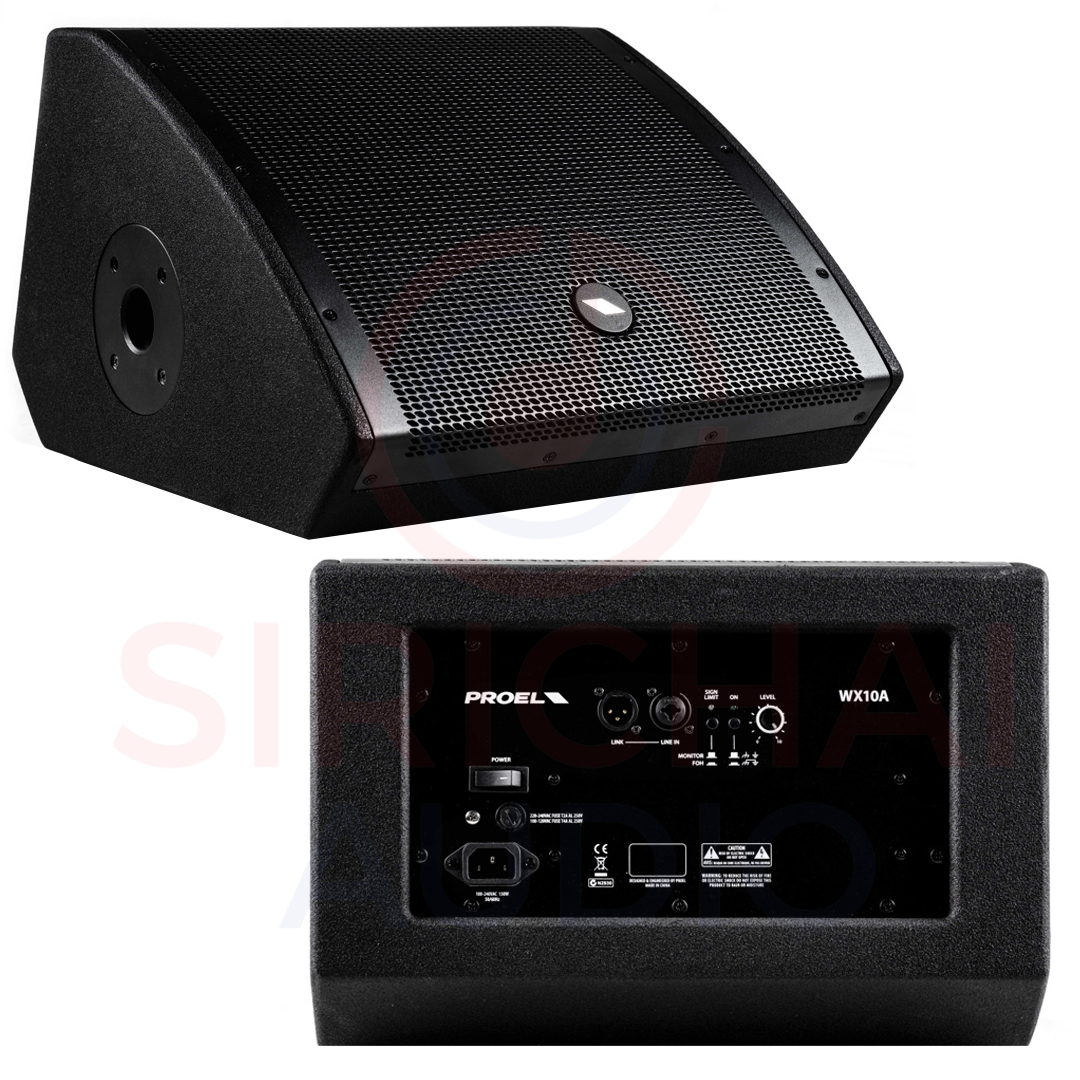

ลำโพงACTIVE MONITOR PROEL รุ่น WX10A
คุณสมบัติสินค้า:
10นิ้ว Active 2-way coaxial stage monitor
หมวดหมู่ : ลำโพง ACTIVE ,
Share
Technical Specifications
System type
2-way coaxial vented stage monitor
Low Frequency Device
10” woofer with 2″VC
High Frequency Device
1” compression driver with 1″VC
Angular Coverage
60°
Frequency response
70 Hz – 20 kHz
Max SPL at 1mt (peak)
123 dB
Amplifier Continuous Power
250W CLASS D with SMPS
Input Impedance
30 kohm balanced, 15 kohm unbalanced
Input Sensitivity
-10 dBu
Controls
LEVEL, PRESET selector (MONITOR, FOH), GND lift
Connectors
INPUT: COMBO (XLR-F/JACK), LINK: XLR-M
Power Supply
230 VAC or 115 VAC – 50/60 Hz
Rated Consumption*
200 W
Construction
MDF with black anti-scratch polyurethane paint
Pole Adapter
1 x side
Handles
1 x side
Monitor taper
36°
Weight
10 kg (22 lb)
Dimensions (W x H x D)
390x396x270 mm
