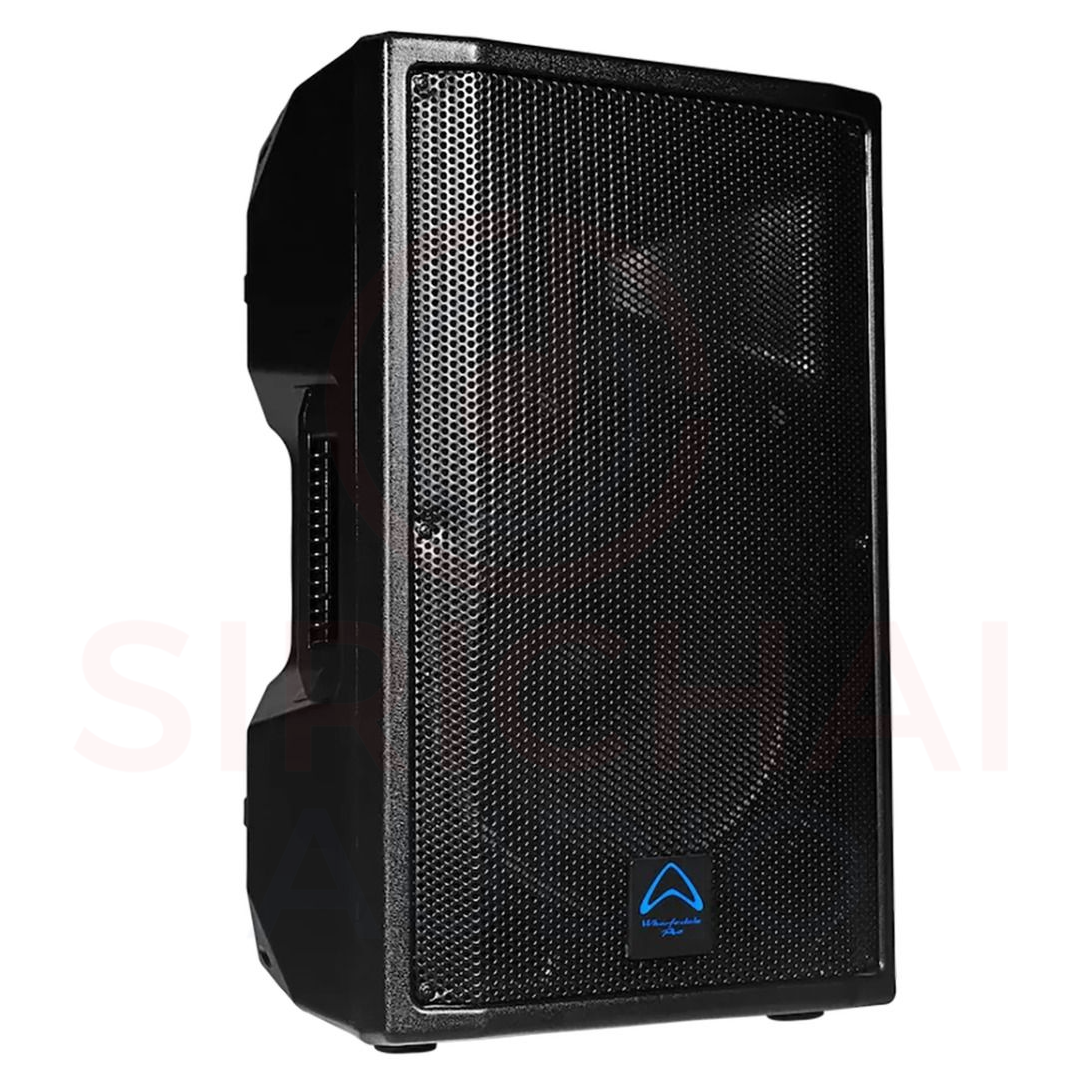

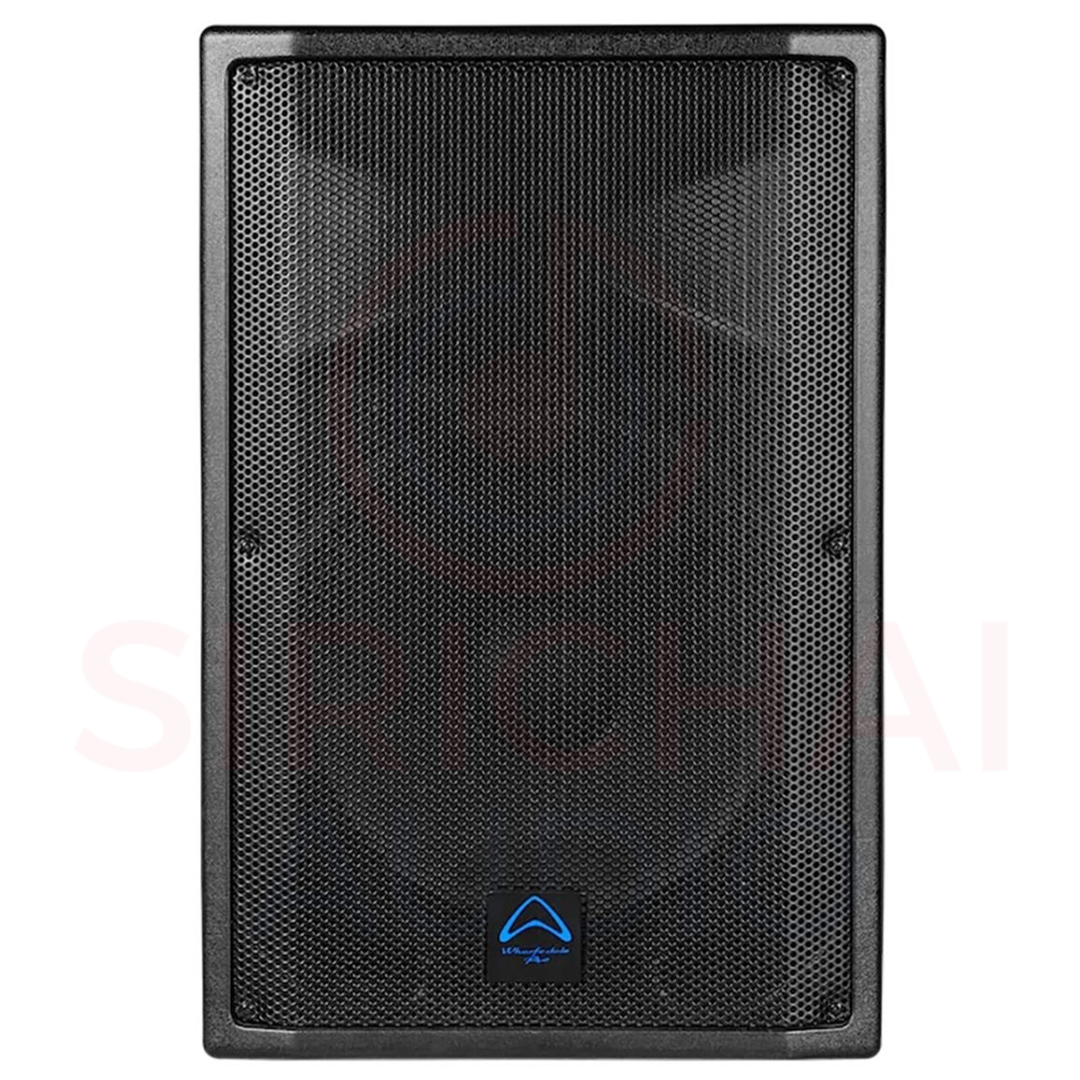

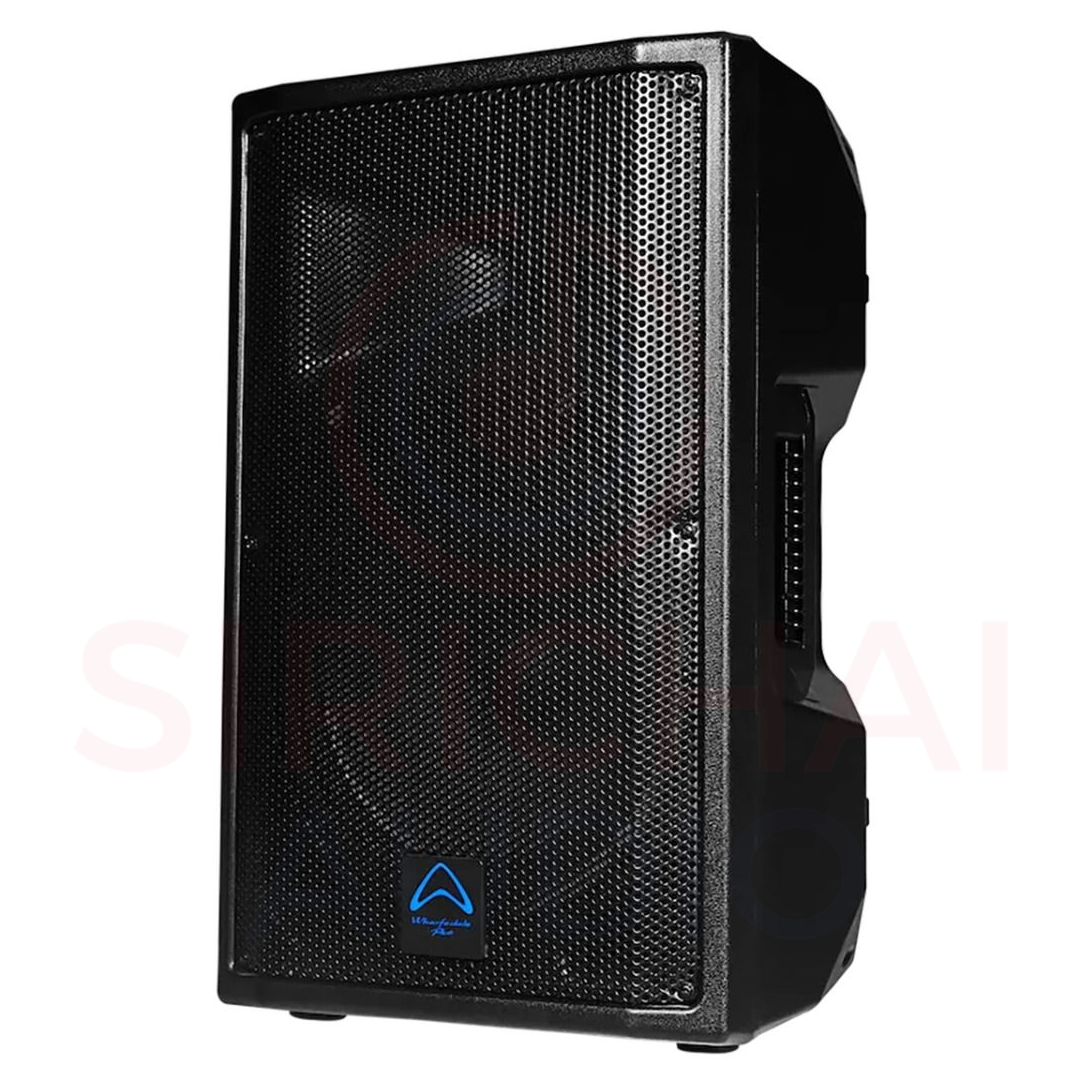

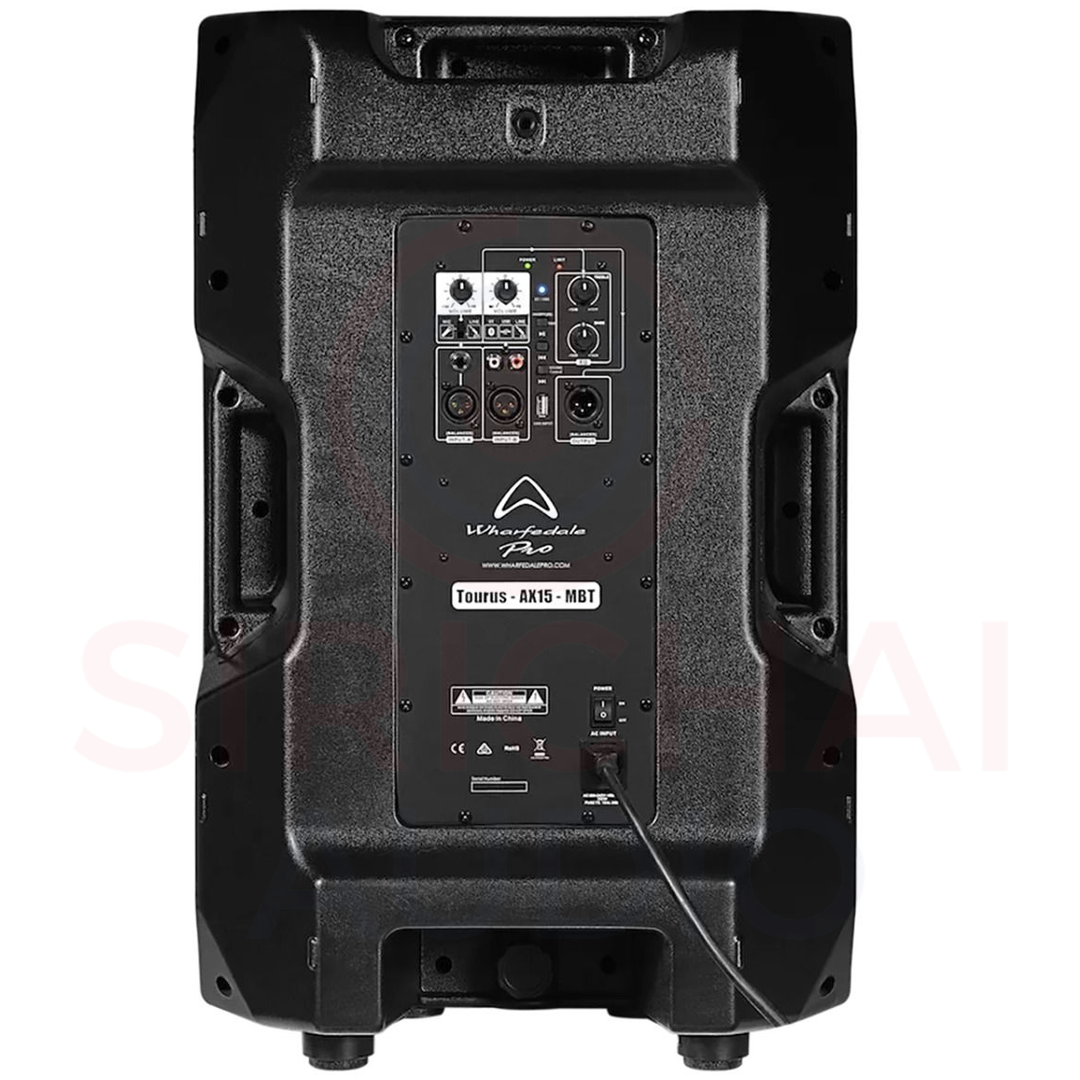

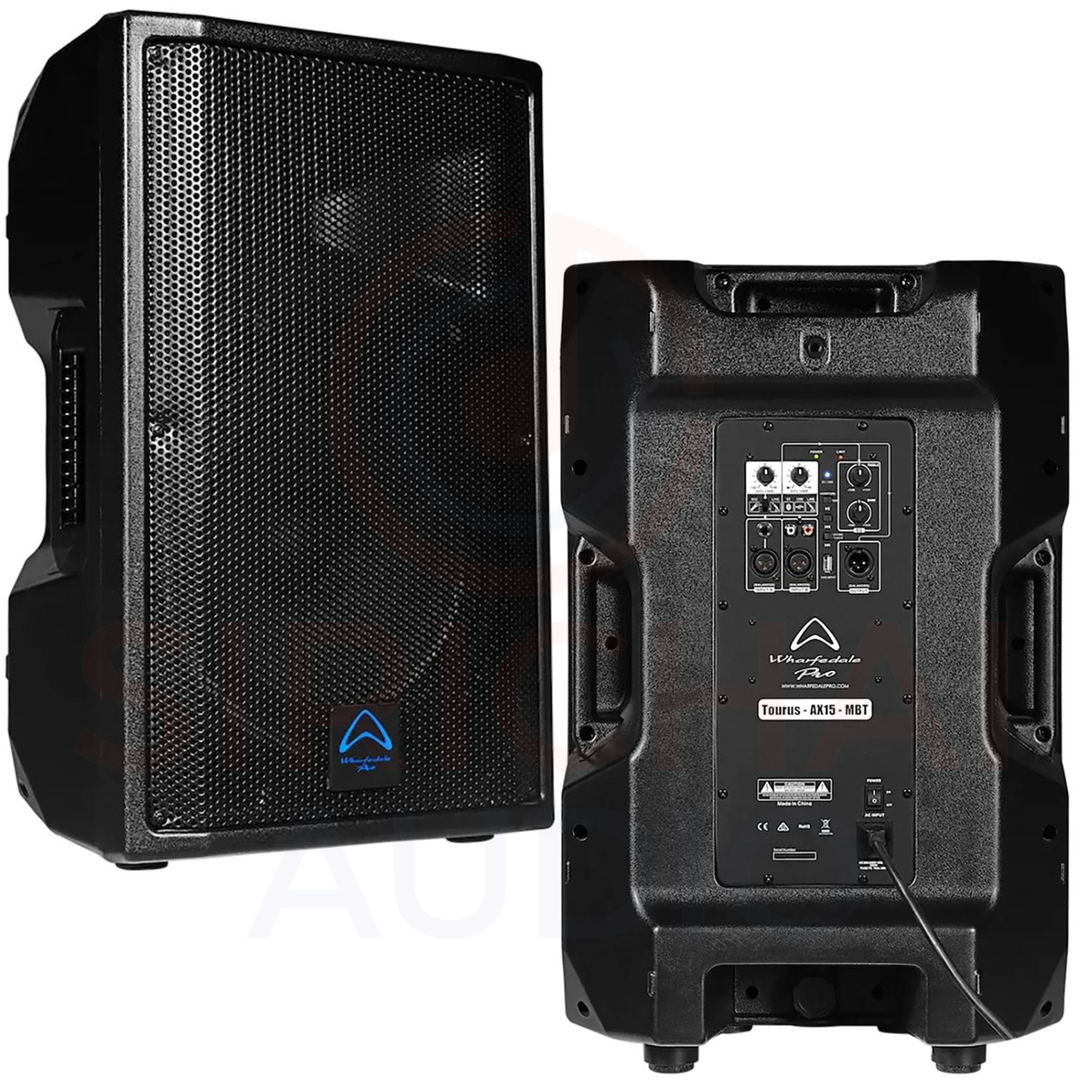

ตู้ลำโพงACTIVE Wharfedale pro TOURUS AX15MBT

Model Name

TOURUS-AX15-MBT

System TypeActive 15” 2-way Bi-Amplified




Frequency Response (+/-3 dB)50-20 KHz




Sensitivity @ 1 w / 1




meter97 dBMaximum SPL (peak @ 1 meter)130 dB




Low Frequency




Transducer Size (mm / inches)381 mm / 15”Coil Size (mm / inches)50.8 mm / 2.0”Impedance4 ΩHigh Frequency Transducer TypeCompression DriverCoil Size (mm / inches)44.5 mm / 1.75”Exit Size (mm / inches)25 mm / 1”Diaphragm MaterialTitaniumImpedance8 ΩHigh Frequency Coverage (H x V)90° x 60°AmplifiersHF Amp Class AB : LF Amp Class DLow-Frequency Power Amplifier350 w Continuous / 700 w PeakHigh- Frequency Power Amplifier100 w Continuous / 200 w PeakElectronic Crossover Crossover FrequencyHI PASS 2.4 KHz LOW PASS 2.4 KHzControls Equalization+/-12 dB Gain for bass and trebleAmplifier Protection Power On ProtectionPower switch on / off muteThermal ProtectionAmplifier shutdown, auto resetDriver, DC and Short ProtectionYesLimiter IndicatorRed LEDPower IndicatorGreen LEDInput typeBalanced / BT / USBInput Connectors2 x TRS JACK, 2 x RCA AND 2 x FEMALE XLRInput Impedance47 KΩ BalancedMaximum Input Level5 VLine Input Sensitivity-10 dBMic Input Sensitivity-40 dBLine Output ConnectorMALE XLRAC Power details Power SupplySMPSAC Power Options100 V – 120 V and 220 V – 240 VPower On IndicatorLEDRigging / Bracket / Mounting Options4 x M8 35 mm Pole-mount with lock screw 3 carry handles (one on each side,one on top) Optional wall-mount bracket (WPB-2)Enclosure Enclosure MaterialInjection Moulded PolypropyleneColourblackGrille1.2 mm steelDimensions (Unpacked)(mm / inches): Height693 mm / 27.3”Width – Front455 mm / 17.9”Width – Rear262 mm / 10.3″Depth401.8 mm / 15.1”




Dimensions (packed)(mm / inches): Height762 mm / 30.0”Width508 mm / 20.0”Depth425 mm / 16.7”Weight




Net Weight (kg / lbs)19.2 kg / 42.2 lbs
