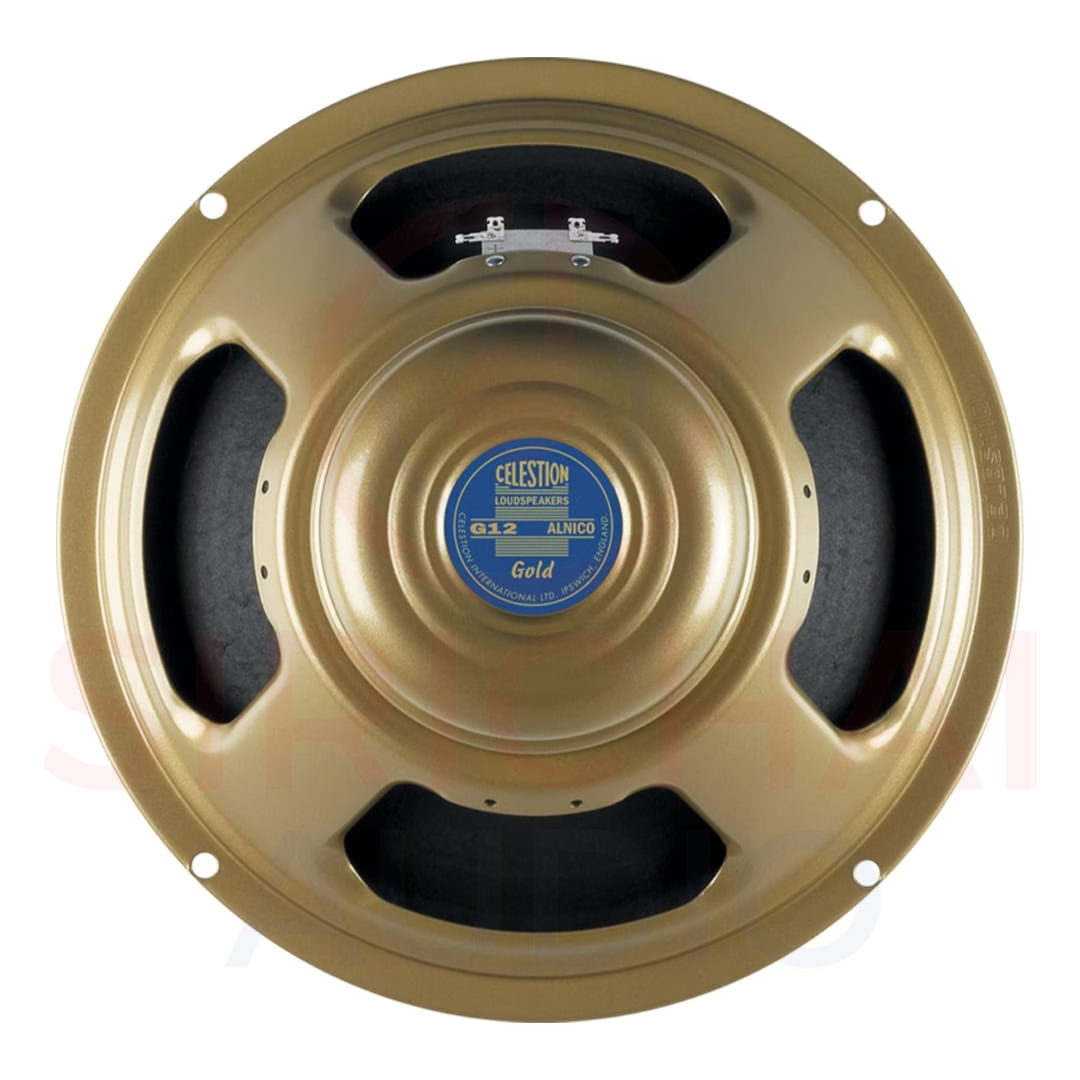

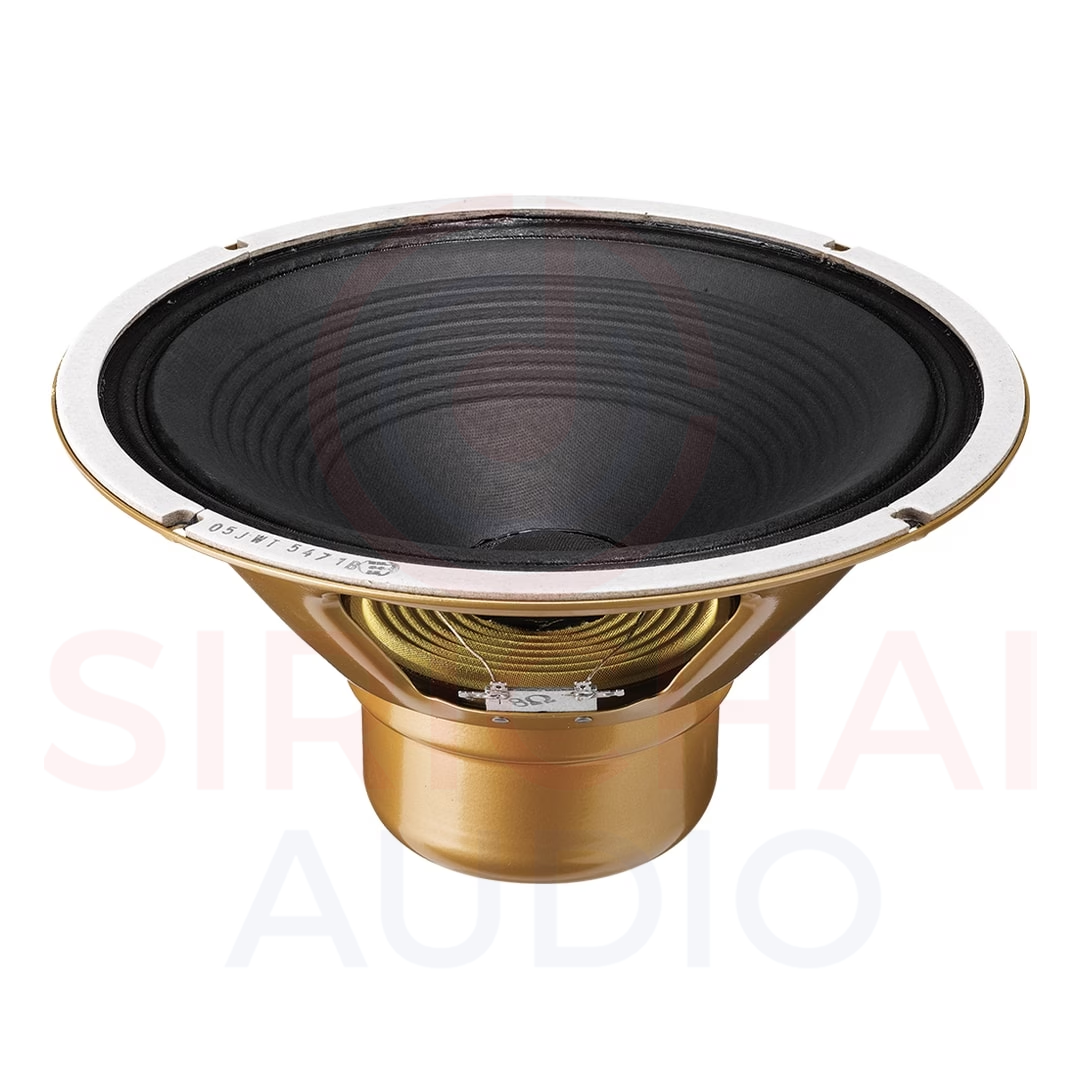

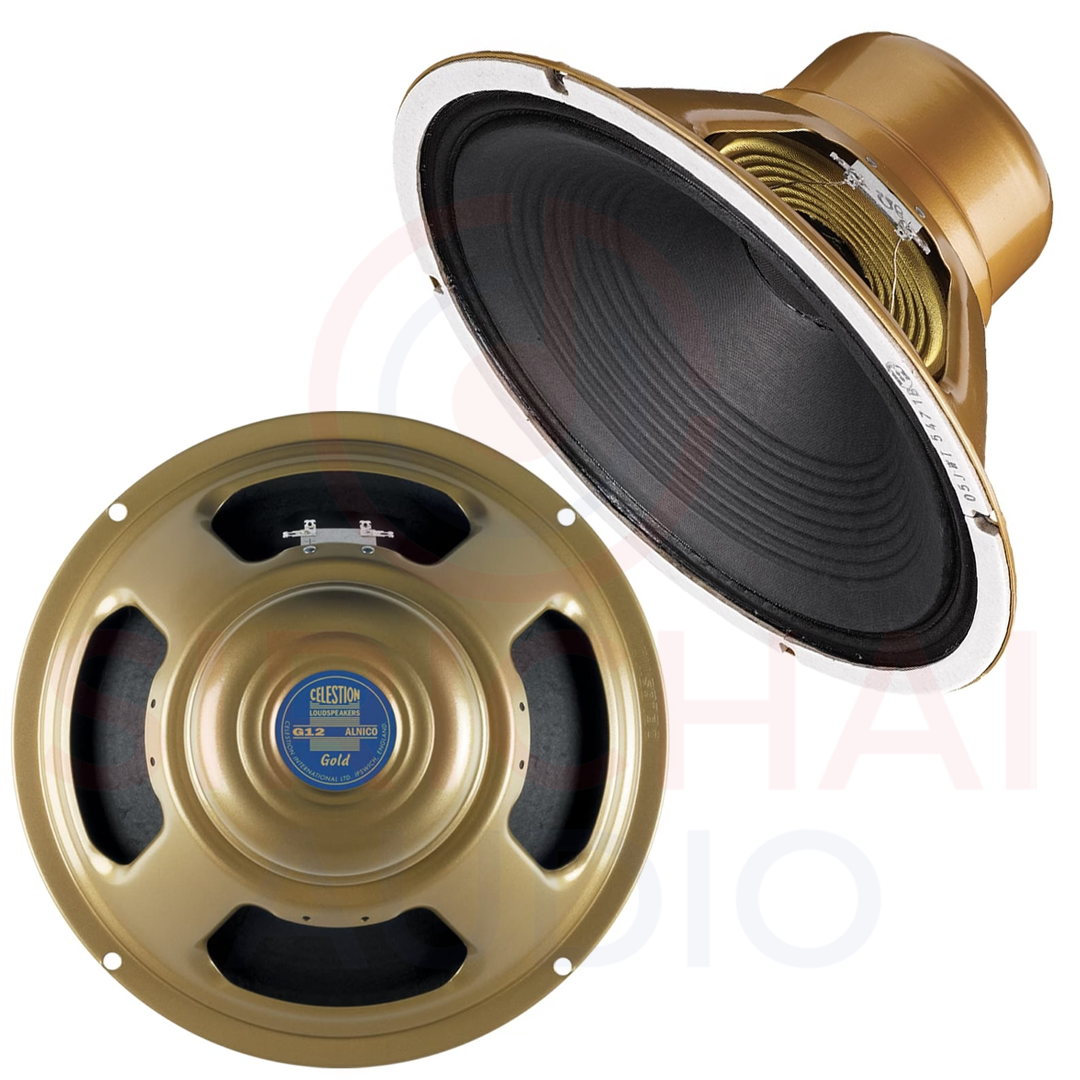

ดอกลำโพง12นิ้ว Celestion Gold

Building on the platform of the Blue the Gold is a higher-powered Alnico-magnet guitar speaker that recreates the unmistakable sonic signature of a ‘well played-in’ original. Over time the high frequencies of a Blue soften and become less chalky as the cone becomes more flexible – a much sought after characteristic that the Gold exhibits straight out of the box.

Also present in the Gold sound from the outset is an added warmth and complexity in the midrange which coupled with the classic Alnico qualities of a laid-back attack rounded low end and brilliant bell-like highs deliver huge rhythm voicings and saturated vocal lead tones.The Gold is a wonderfully expressive and revealing loudspeaker affording guitarists an unprecedented degree of dynamic control.

Specifications
12in
Diameter
8Ω or 15Ω
Rated impedance
100dB
Sensitivity

Nominal diameter : 305mm / 12in
Power rating : 50W
Rated impedance : 8Ω or 15Ω
Sensitivity : 100dB
Chassis type : Pressed steel
Magnet type : Alnico
Voice coil diameter : 1.75in / 44.5mm
Voice coil material : Round copper
Frequency range : 75-5000Hz
Resonance frequency, Fs : 75Hz
DC resistance, Re : 6.4Ω or 11.8Ω

8Ω Frequency Response



Mounting Information
Cut-out diameter : 283mm / 11.1in
Diameter : 309mm / 12.2in
Magnet structure diameter : 128mm / 5.0in
Mounting hole dimensions : 7.9mm / 0.31in Ø
Mounting hole PCD : 297mm / 11.7in
Number of mounting holes : 4
Chassis depth (inc gasket) : 92mm / 3.63in
Magnet depth : 73mm / 2.87in
Overall depth : 165mm / 6.5in
Unit weight : 4.2kg / 9.3lb
