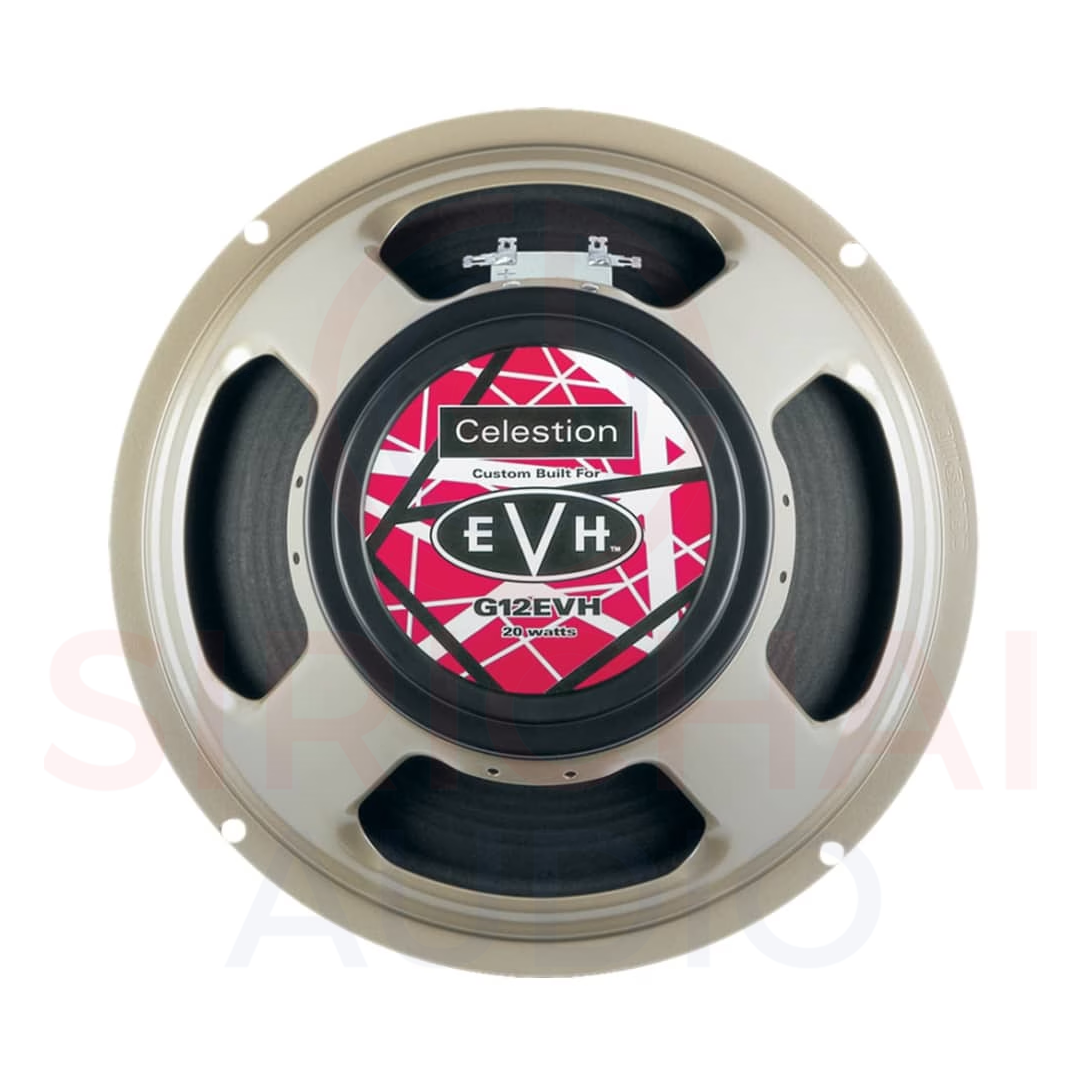

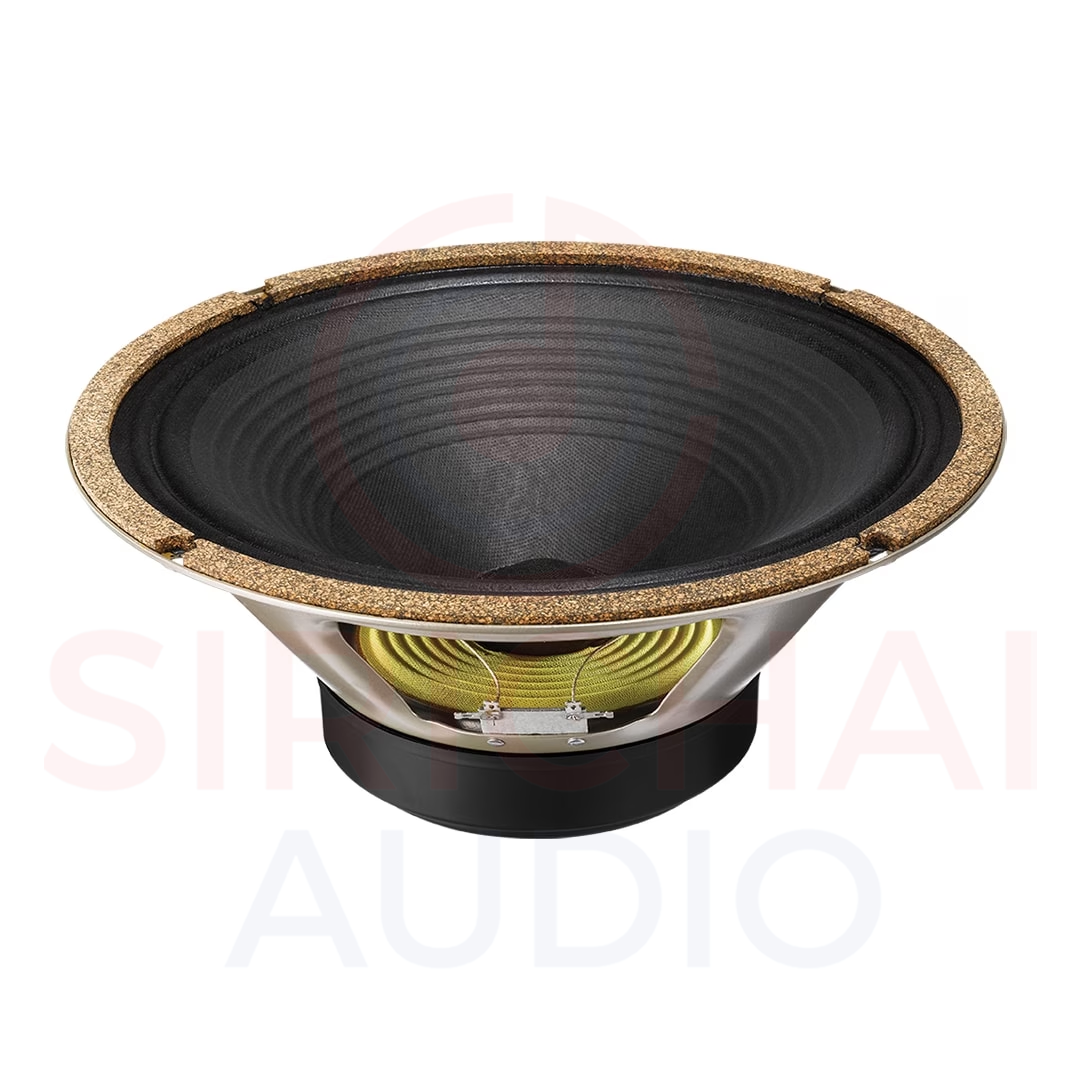

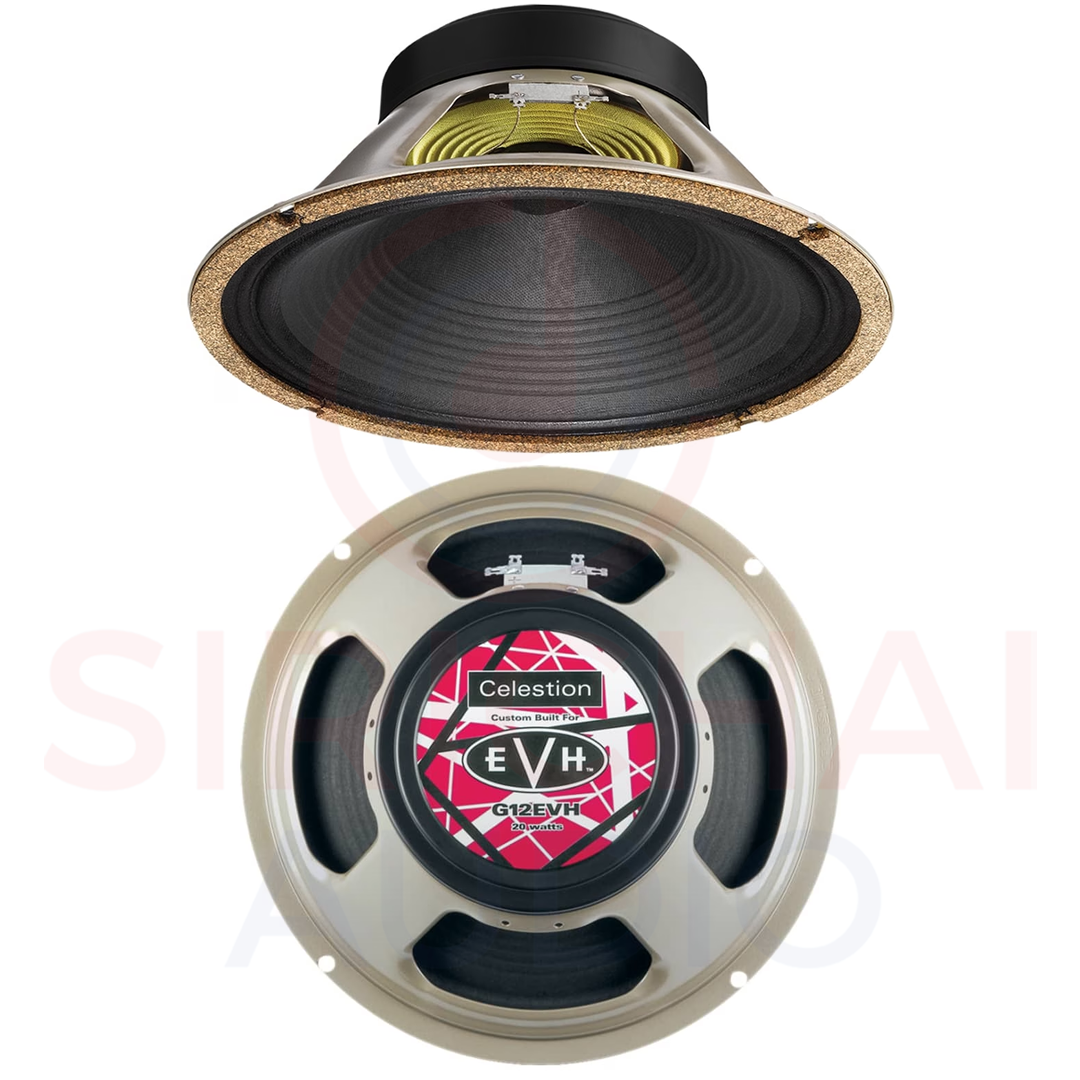

ดอกลำโพง12นิ้ว Celestion รุ่น G12 EVH ( Ven Halen Signature )

Throughout his career, whether in the studio or on the stage, the Celestion 20-watt ‘Greenback’ has played an essential role to Edward Van Halen in making the tones that rewrote the book on guitar sound.

When it came time to select speakers for his new EVH Brand 5150-III signature amp, there was only one choice – Celestion.The Heritage Series G12M guitar speaker faithfully reproduces the sonic qualities of the original ’60s version Greenback used to make EVH tone from day one. With the addition of a black rear can featuring the EVH logo and his unmistakable red, white and black stripes, the G12EVH was born. Unmistakable look, but more importantly unmistakable tone.

Specifications
12in
Diameter
8Ω or 15Ω
Rated impedance
96dB
Sensitivity


Nominal diameter : 305mm / 12in
Power rating : 20W
Rated impedance : 8Ω or 15Ω
Sensitivity : 96dB
Chassis type : Pressed steel
Magnet type : Ceramic
Magnet weight : 0.99kg / 35oz
Voice coil diameter : 1.75in / 44mm
Voice coil material : Round copper
Frequency range : 75-5000Hz
Resonance frequency, Fs : 75Hz
DC resistance, Re : 6.57Ω & 12.13Ω

8Ω Frequency Response



Mounting Information
Cut-out diameter : 283mm / 11.1in
Diameter : 309mm / 12.2in
Magnet structure diameter : 150mm / 5.9in
Mounting hole dimensions : 7.9mm / 0.31in Ø
Mounting hole PCD : 297mm / 11.7in
Number of mounting holes : 4
Chassis depth (inc gasket) : 91mm / 3.56in
Magnet depth : 39mm / 1.54in
Overall depth : 130mm / 5.1in
Unit weight : 3.6kg / 7.9lb
