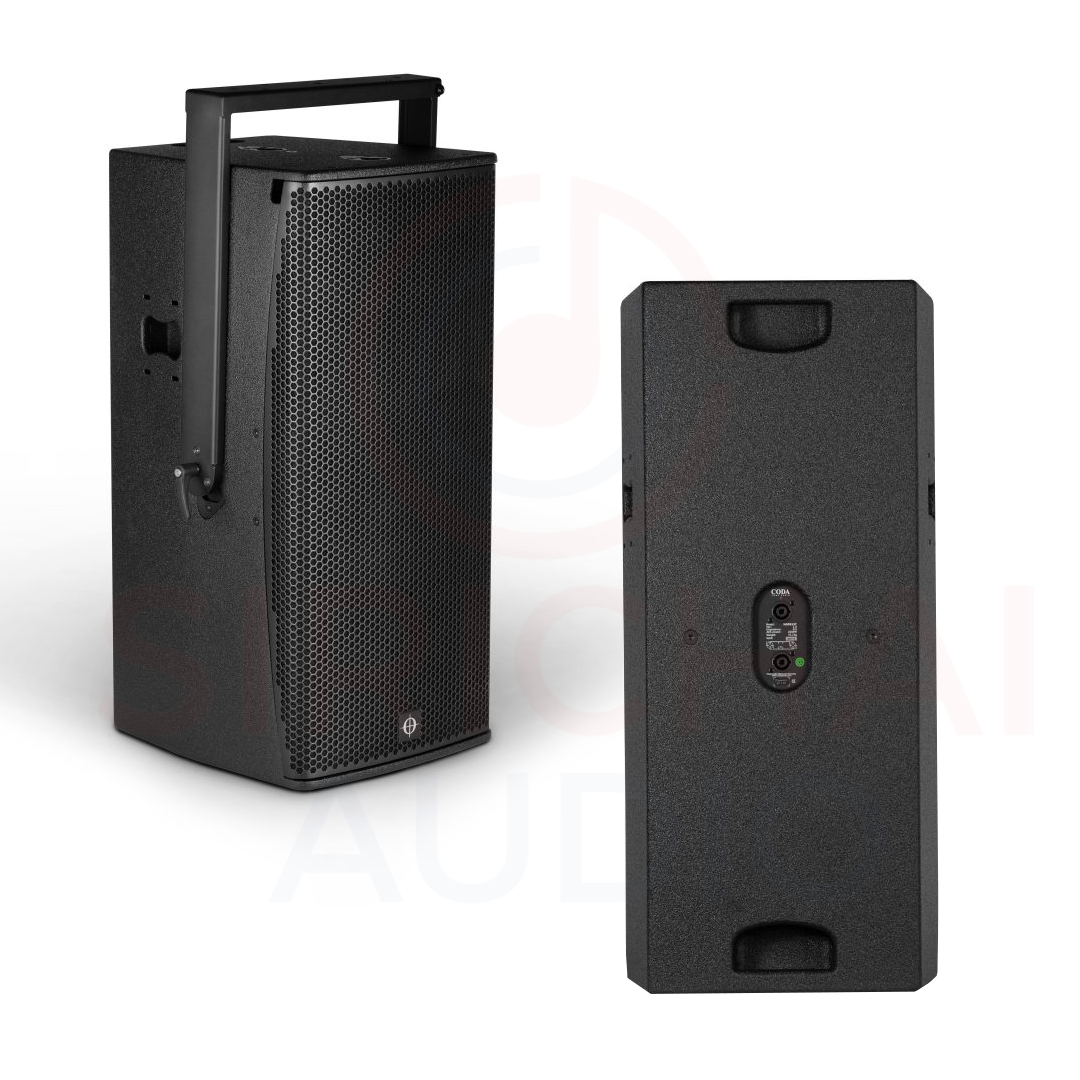

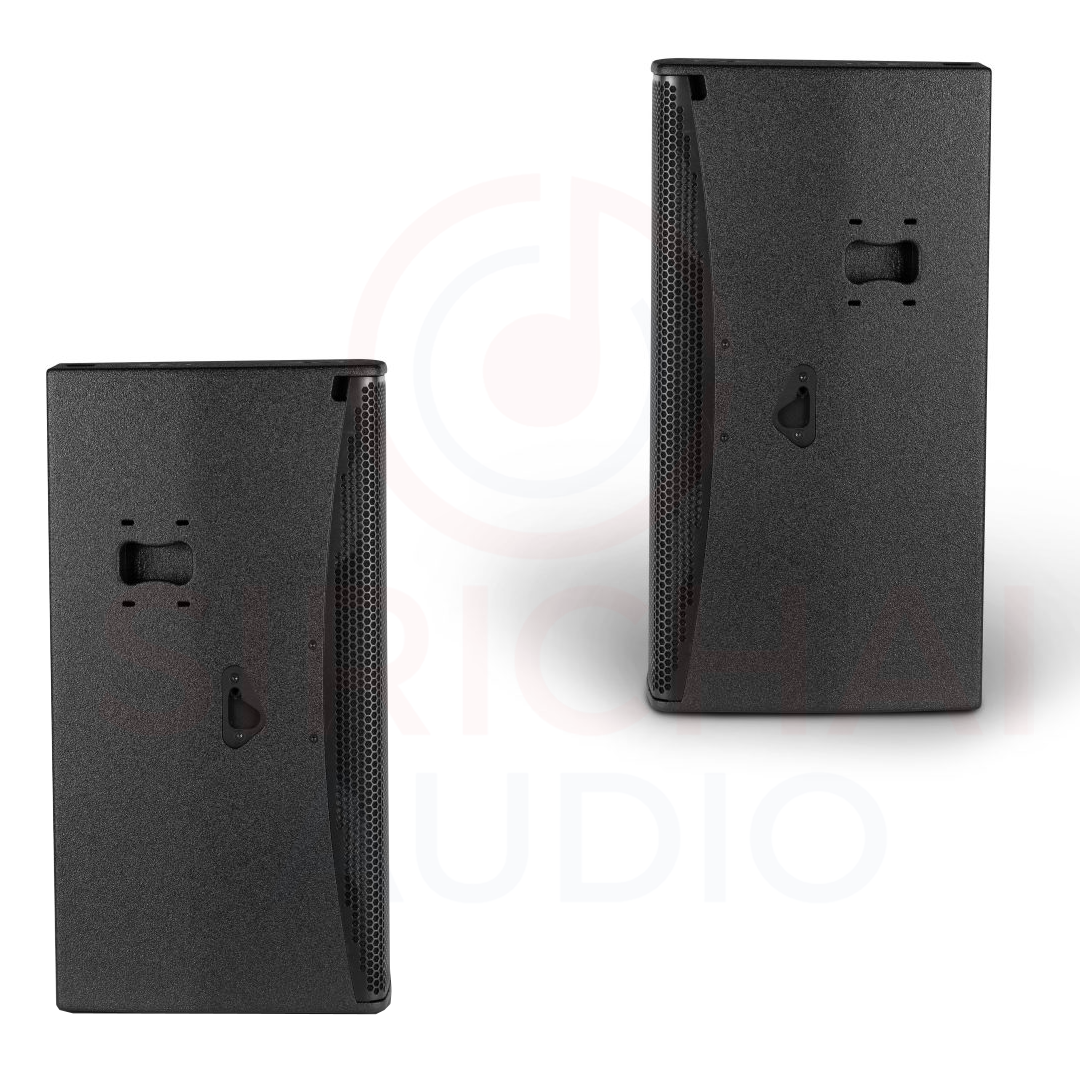

ลำโพง CODA AUDIO รุ่น HOPS12T-Pro

Main Features
High-output 3-way full range point source optimised for mobile applications
 DAC Technology
 Superior sound with linear phase response
 Frequency range: 44 Hz – 22 kHz (-6 dB)
 High power with passive power handling of 2000 W (AES)
 Crystal-clear sound from 1.4” mid/high coaxial ring-diaphragm neodymium driver
 Ultra-low distortion with dual 12” neodymium woofers
 Instafit Magnetic Waveguide
 Variable dispersion patterns: 90° x 60° or 60° x 40° (rotatable)
 Max. peak SPL 144 dB (A)

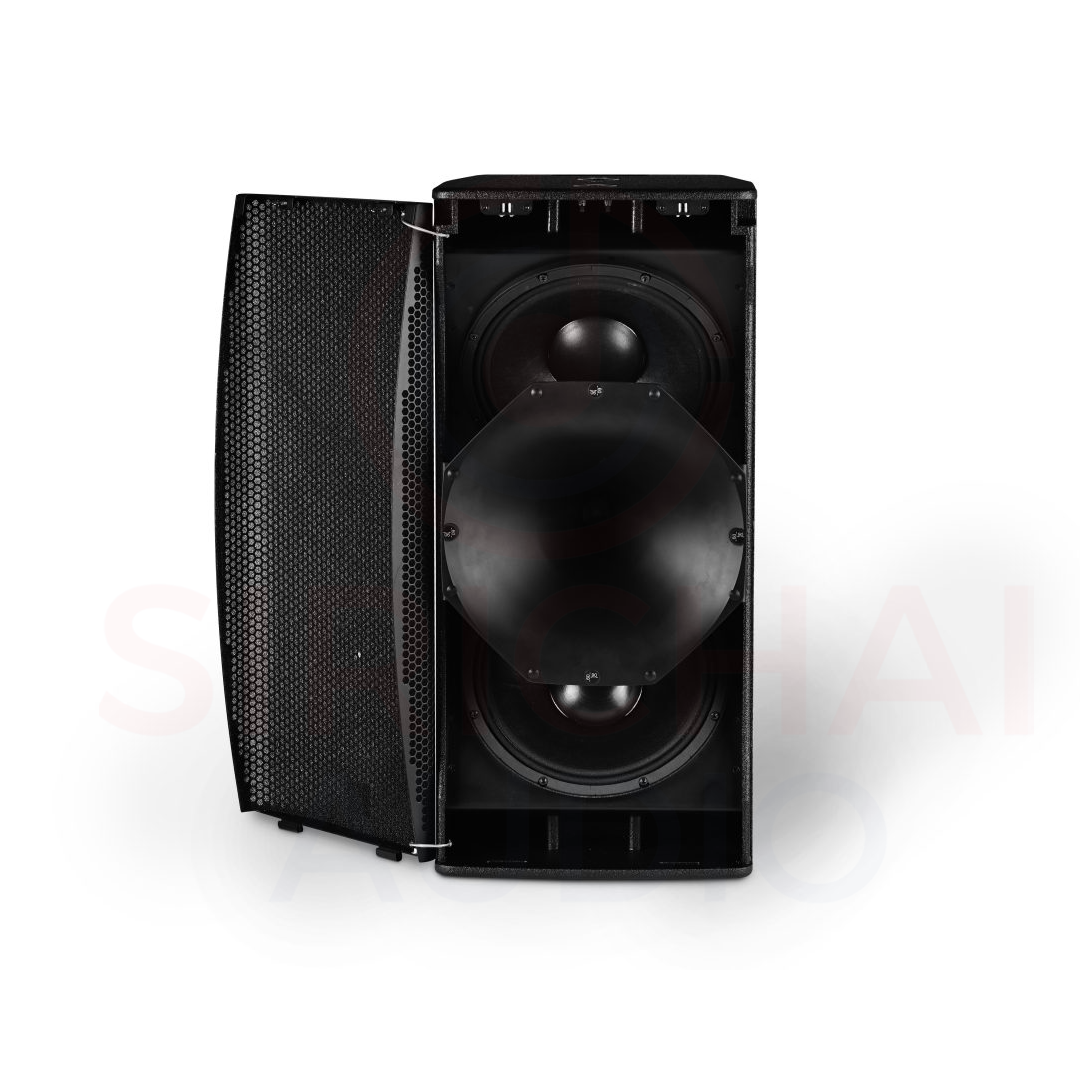

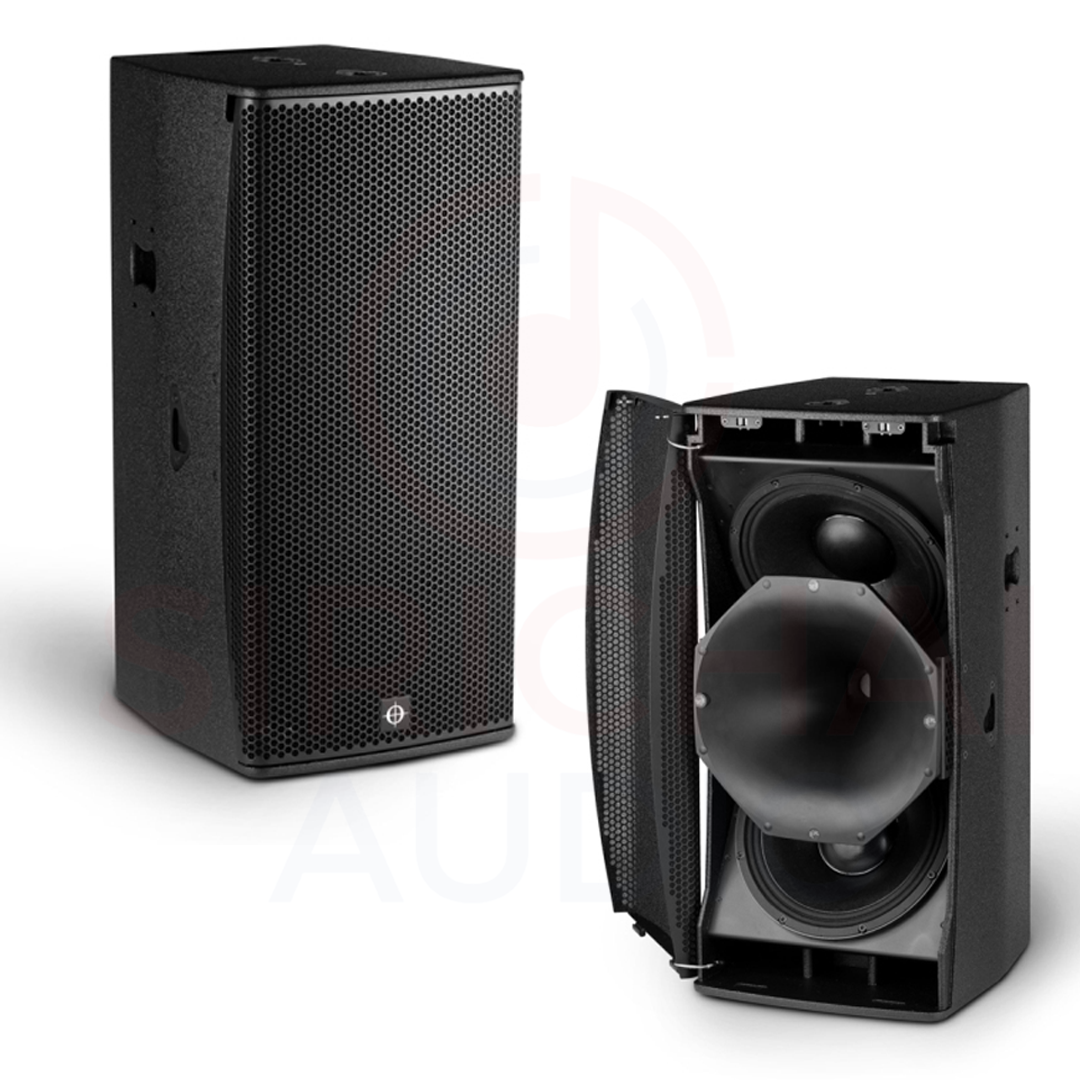

 Quick Release Grille
 Extreme durability from the multiplex enlosure with polyurea coating

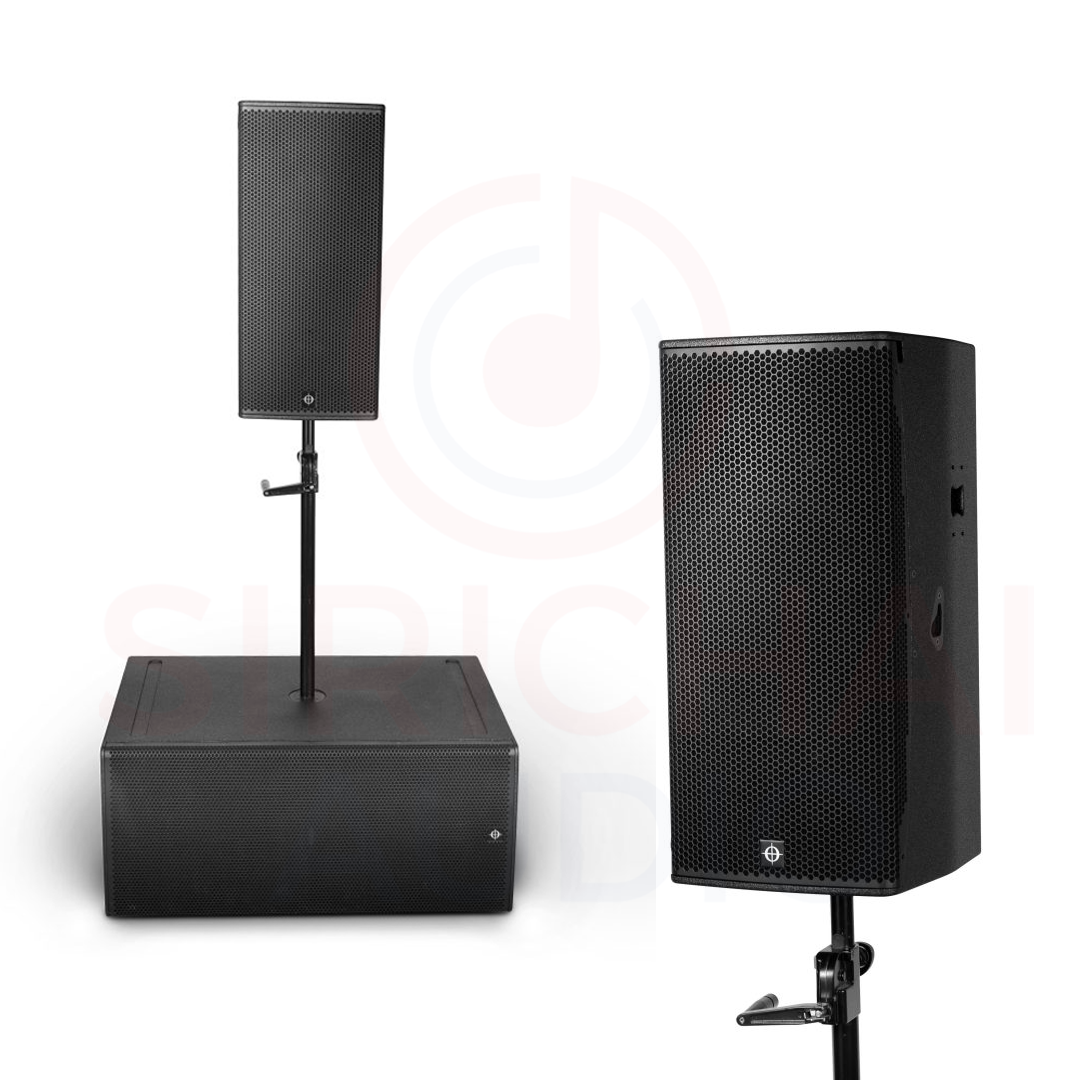

 Simple mounting with a range of accessories
 System integration with LINUS Loudspeaker Management Amplifiers

Specification


Type:
High-Output 3-way Full-Range Point Source for Mobile Applications
Application:
Full-range point source for mobile applications
Frequency response:
44 Hz – 22 kHz (-6 dB)
Power handling Low AES / peak:
2000 W / 8000 W
Max. peak SPL (with LINUS14/D):*
HOPS12T-64: 144 dB (A)
HOPS12T-96: 142 dB (A)
Amplification, cabinets per amplifier

LINUS6.4 (SE) Optimum / Maximum:
8/16
LINUS6.4 (BTL) Optimum / Maximum:
4/4
LINUS12C Optimum / Maximum:
8/12
LINUS14 Optimum / Maximum:
8/12
Dispersion horizontal:
HOPS12T-64: 60° (rotatable)
HOPS12T-96: 90° (rotatable)
Dispersion vertical:
HOPS12T-64: 40° (rotatable)
HOPS12T-96: 60° (rotatable)
Components Low frequency:
2x 12″ neodymium, water resistant cones,
4″ (101 mm) VC, 1000 W (AES) each
Components Mid/High frequency:
1.4″ neodymium coaxial driver,
MF: 3.5″ (90 mm) VC, 150 W (AES)
HF: 1.75″ (44.4 mm) VC, 80 W (AES)
Crossover point:
3-way passive 440 Hz / 6300 Hz
Input connectors:
2x Neutrik™ NL4MP
Nominal impedance LF / MF+HF:
8 Ω (1+/1-)
Enclosure material:
Hybrid birch plywood and aluminium
Finish:
Polyurea black coating
Suspension:
CMS + flange adapter, M8 threaded points for additional U-bracket
IP rating (IEC 60529):
IP54
Weather protection options:
Standard IP55: IP55 (direct cable)
MG1 (Marine Grade 1): IP55
Dimensions (WxHxD):
368 x 790 x 420 mm / 14.49 x 31.1 x 16.54″
Net weight:
36.2 kg / 79.81 lbs
