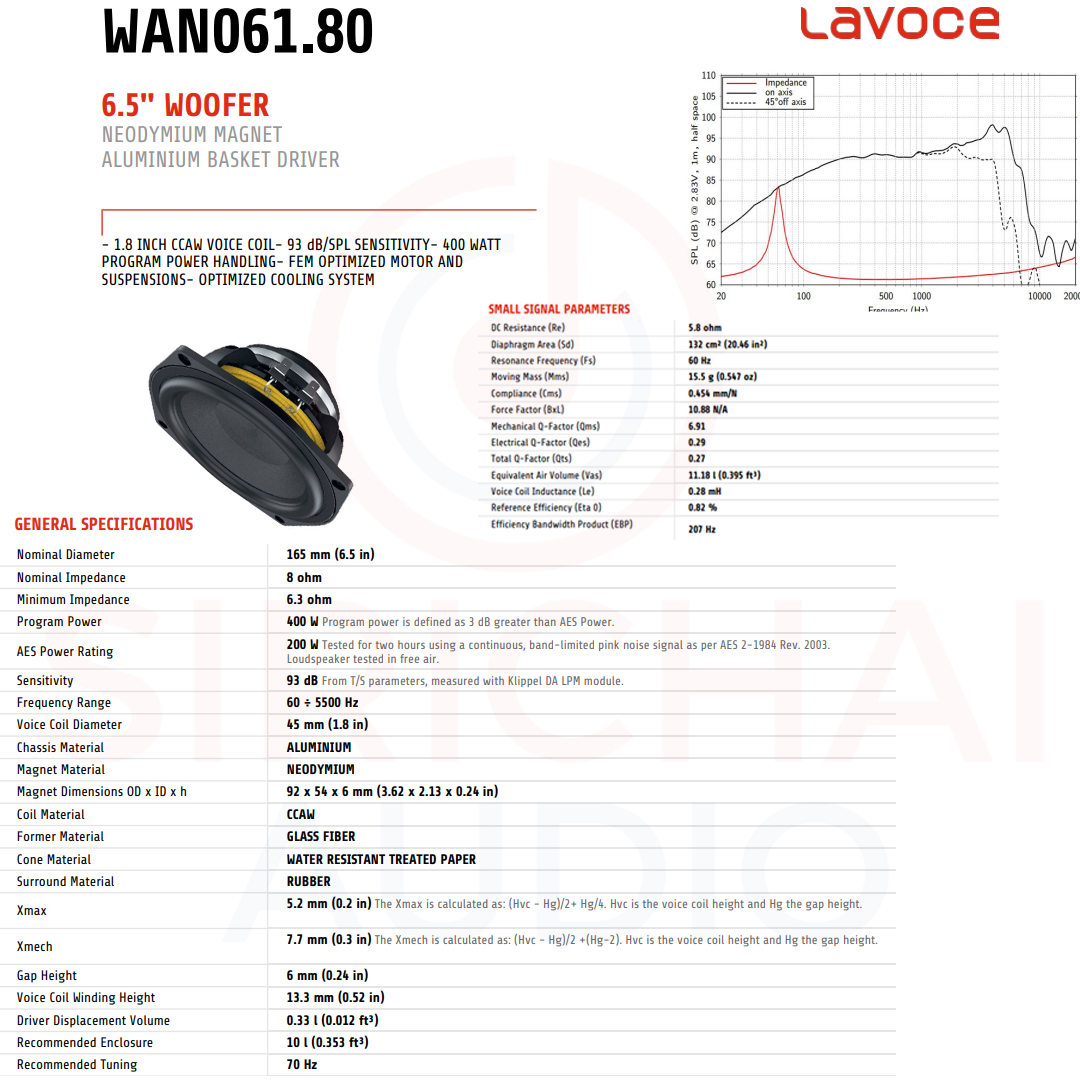

ดอกลำโพง6.5นิ้ว Lavoce รุ่น WAN061.80 (NEODYMIUM)

WAN061.80

6.5'' WOOFER
NEODYMIUM MAGNET
ALUMINIUM BASKET DRIVER

• 8Ω

• 16Ω

- 1.8 INCH CCAW VOICE COIL

- 93 dB/SPL SENSITIVITY

- 400 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM


General Specifications
Nominal Diameter
165 mm (6.5 in)
Nominal Impedance
8 ohm
Minimum Impedance
6.3 ohm
Program Power
400 W
AES Power Rating
200 W
Sensitivity
93 dB
Frequency Range
60 ÷ 5500 Hz
Voice Coil Diameter
45 mm (1.8 in)
Chassis Material
ALUMINIUM
Magnet Material
NEODYMIUM
Magnet Dimensions OD x ID x h
92 x 54 x 6 mm (3.62 x 2.13 x 0.24 in)
Coil Material
CCAW
Former Material
GLASS FIBER
Cone Material
WATER RESISTANT TREATED PAPER
Surround Material
RUBBER
Xmax
5.2 mm (0.2 in)
Xmech
7.7 mm (0.3 in)
Gap Height
6 mm (0.24 in)
Voice Coil Winding Height
13.3 mm (0.52 in)
Driver Displacement Volume
0.33 l (0.012 ft³)
Recommended Enclosure
10 l (0.353 ft³)
Recommended Tuning
70 Hz



Small Signal Parameters

DC Resistance (Re)
5.8 ohm
Diaphragm Area (Sd)
132 cm² (20.46 in²)
Resonance Frequency (Fs)
60 Hz
Moving Mass (Mms)
15.5 g (0.547 oz)
Compliance (Cms)
0.454 mm/N
Force Factor (BxL)
10.88 N/A
Mechanical Q-Factor (Qms)
6.91
Electrical Q-Factor (Qes)
0.29
Total Q-Factor (Qts)
0.27
Equivalent Air Volume (Vas)
11.18 l (0.395 ft³)
Voice Coil Inductance (Le)
0.28 mH
Reference Efficiency (Eta 0)
0.82 %
Efficiency Bandwidth Product (EBP)
207 Hz
