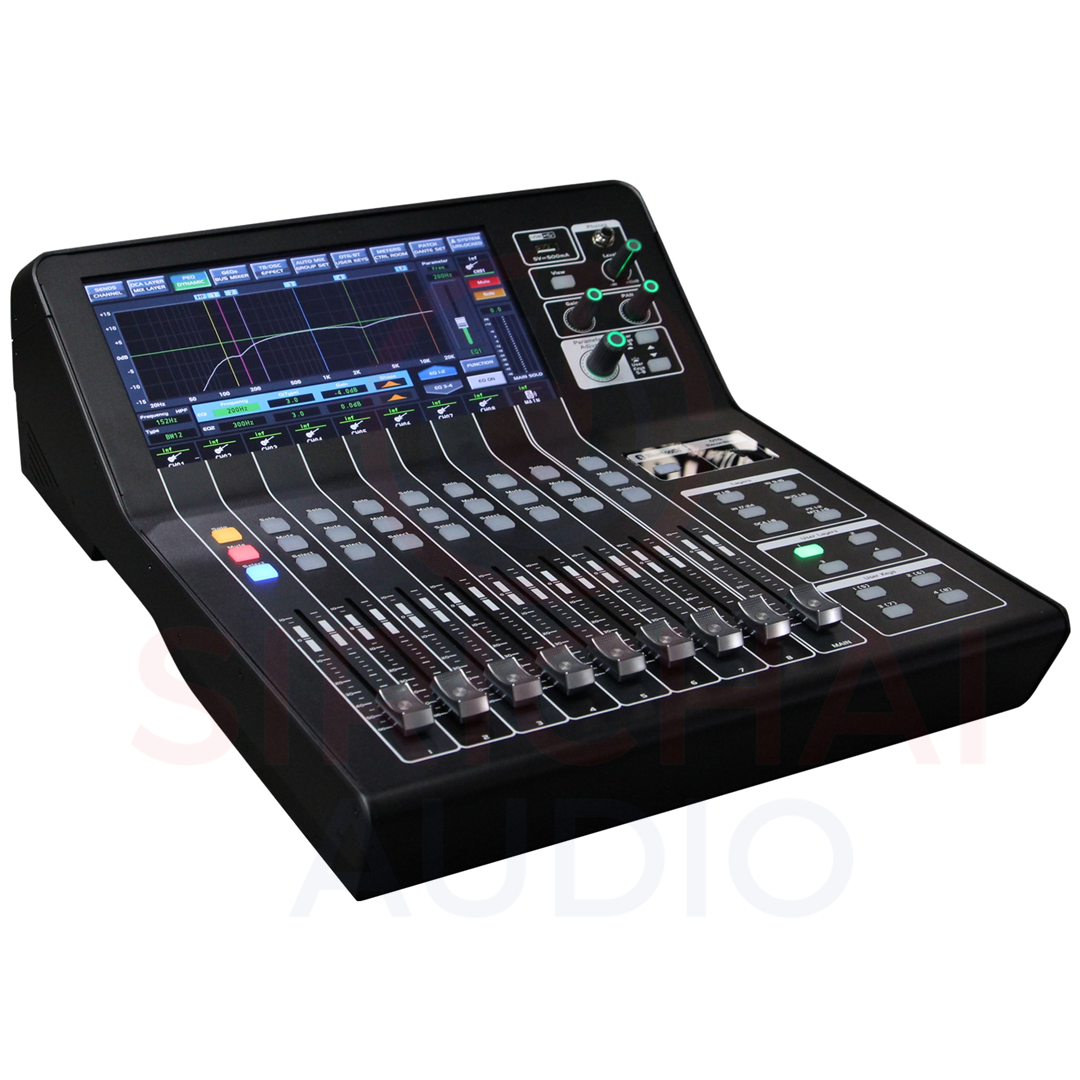

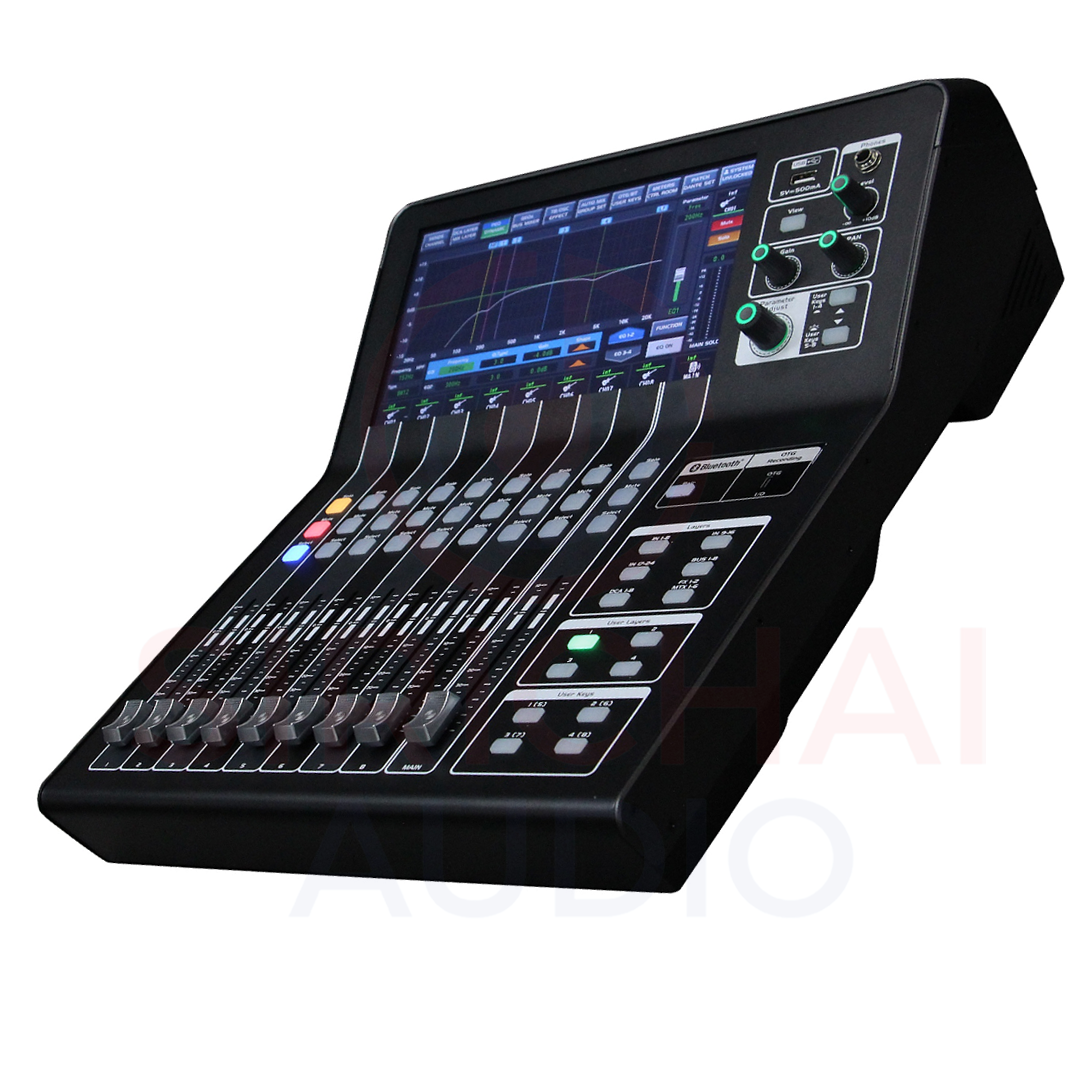

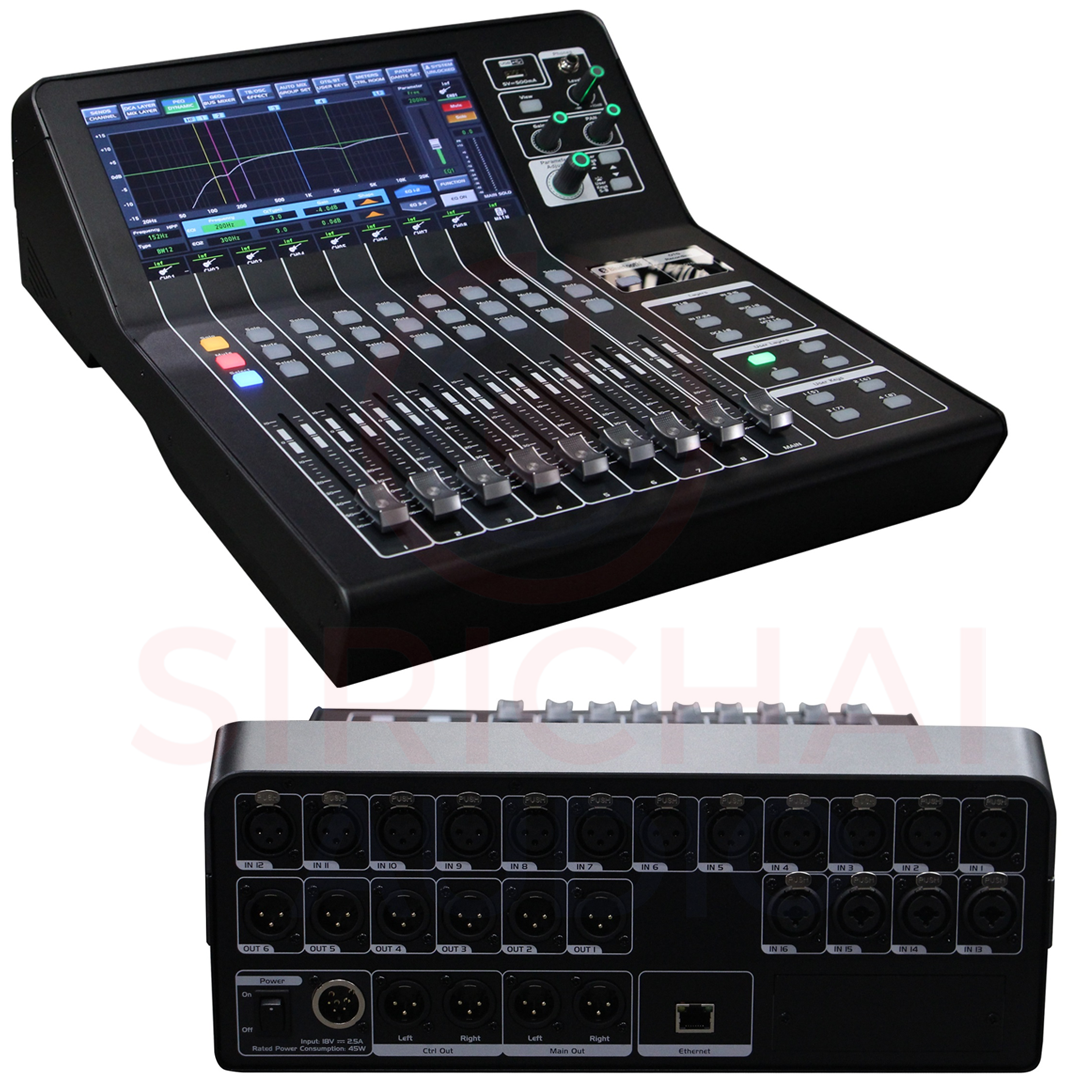

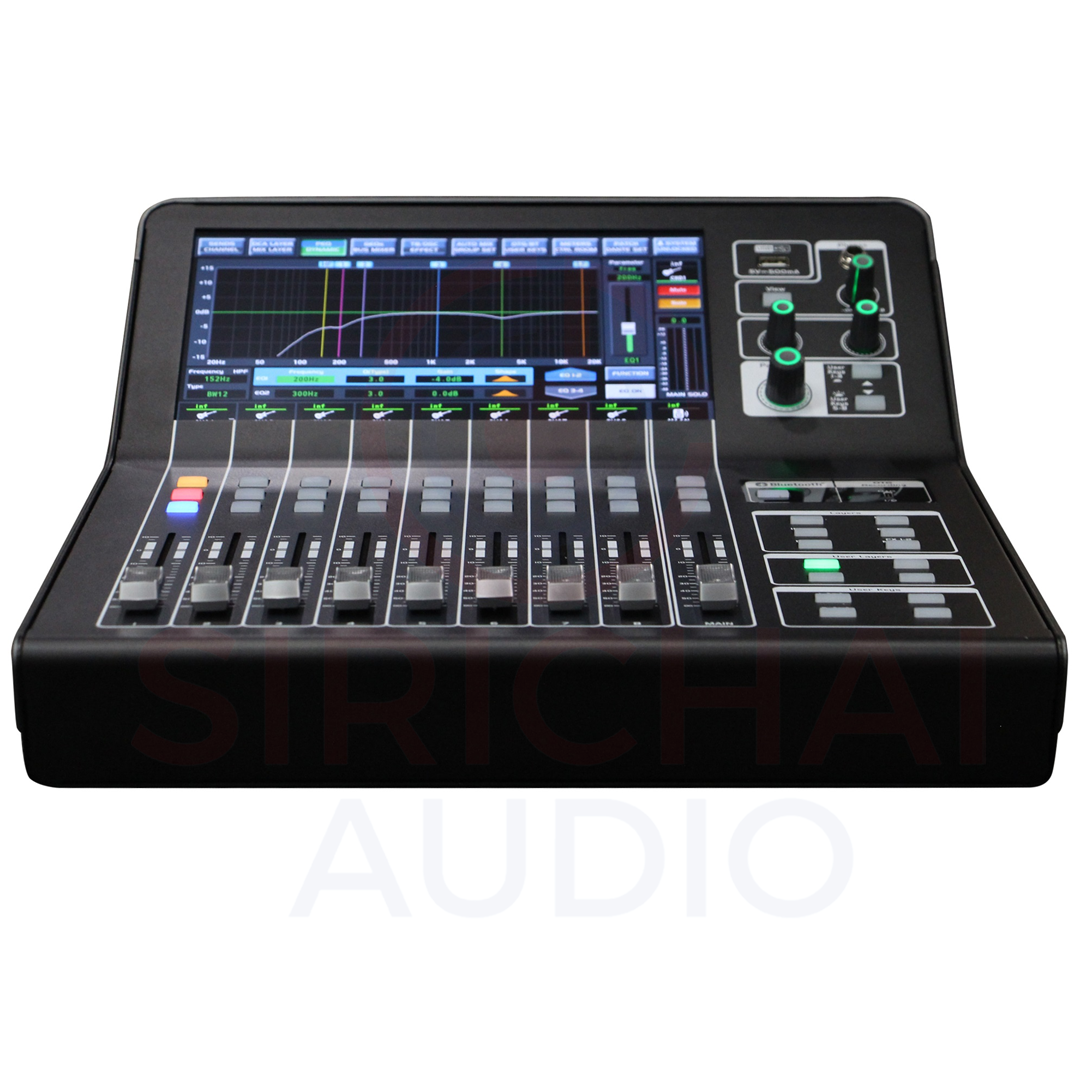

Digital Mixer มิกซ์ดิจอตอล TOPP PRO รุ่น DM16.6

Topp Pro DM 16.6 มิกเซอร์ดิจิตอล 16 แชนเนล

หน้าจอสัมผัส 10.1 นิ้ว

เฟดเดอร์ไฟฟ้า สำหรับคอนเสิร์ตและอีเวนต์มืออาชีพ

SYSTEM : 16 Channel 6 Bus Compact Digital Mixer with Bluetooth and USB
FREQ : 22 Hz - 20 kHz @ 0 dBu +/- 2 dBu , INPUT : 12 MIC XLR & 4 MIC XLR/TRS (Combo)
INPUT LEVEL : +20 dBu , OUTPUT LEVEL : +20 dBu +/-1.5 dBu <0.03% at 0 dBu 1 kHz
PROCESSOR : 32 Bit 32 Bit, Floating Point / ADC/DAC Dynamic Range : 113 dB
DIMENSIONS (WxDxH) : 349 x 452 x 147 mm ; N.W. : 6.7 kg (14.77 ibs)

Technical Specifications
Parameter / Feature
Technical Details & Specification
Audio Core Architecture
32-bit Floating-point Digital Signal Processing (DSP)
Available Sampling Rates
24-bit / 48kHz / 96kHz
Analog Inputs
16 Microphone Preamplifiers (Class A Input Buffer + Dual-servo Gain Stage)
Input Connector Types
12 x XLR Female + 4 x XLR/TRS Combo Sockets
Digital Gain Control Range
0 to 50 dB (Adjustable via physical knob & read from LCD screen)
Input Signal LED Indicators
• Green (SIG): Signal exceeds -48dB
• Yellow (PEAK): Input signal reaches peak headroom
• Red (CLIP): Signal exceeds +16dB (Overload distortion)
Phantom Power
+48V Phantom Power (Individually assignable per channel)

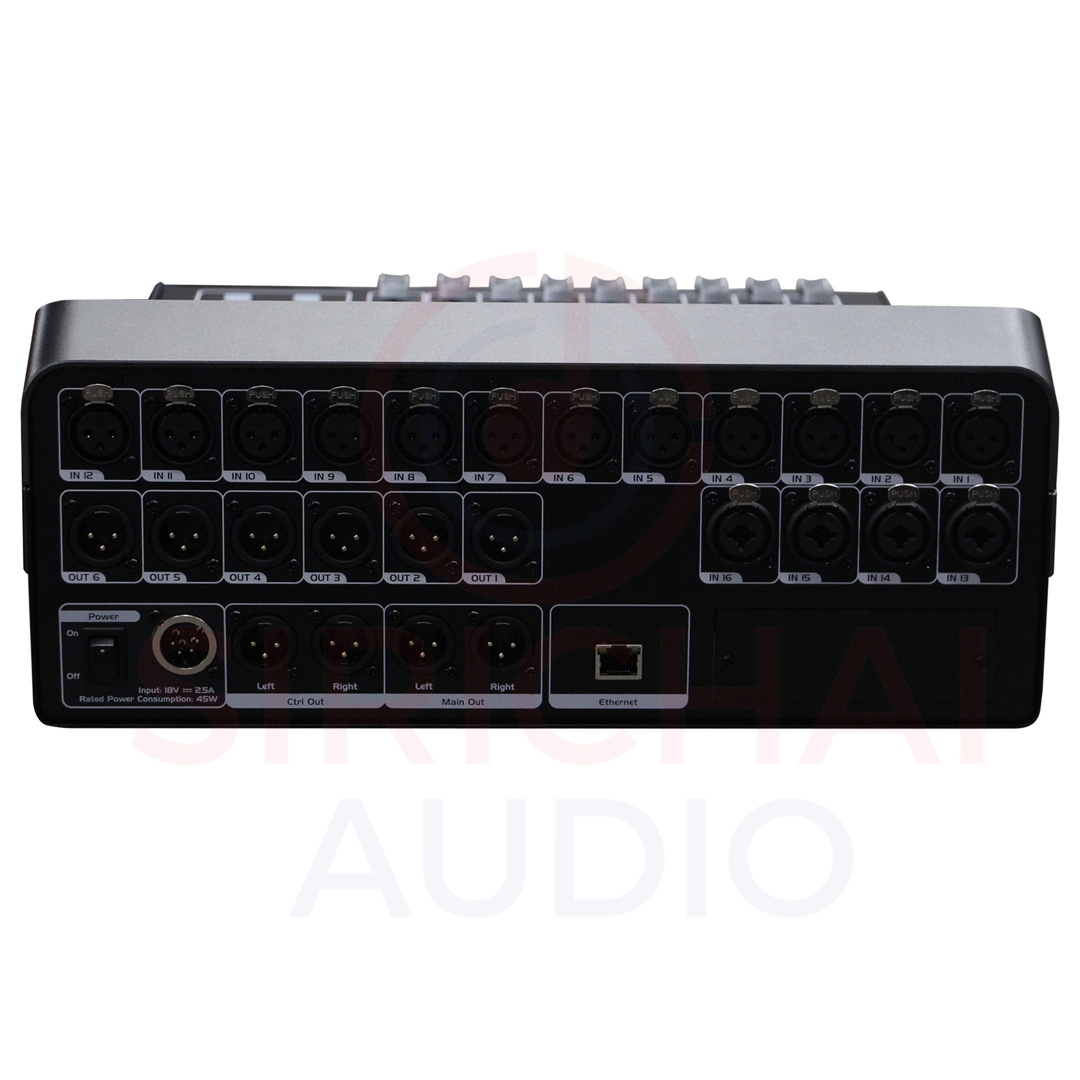

Analog Outputs
8 x XLR Balanced Mixing Bus Outputs (Assignable to BUS 1-8, MTX 1-6, or MAIN L/R)
Dedicated Control Room Outputs
2 x XLR Balanced (Ctrl Out L/R)
Main Outputs
2 x XLR Balanced (Main Output L/R)
Headphone Interface
1 x 1/4″ Phone Port with dedicated Level Control Knob

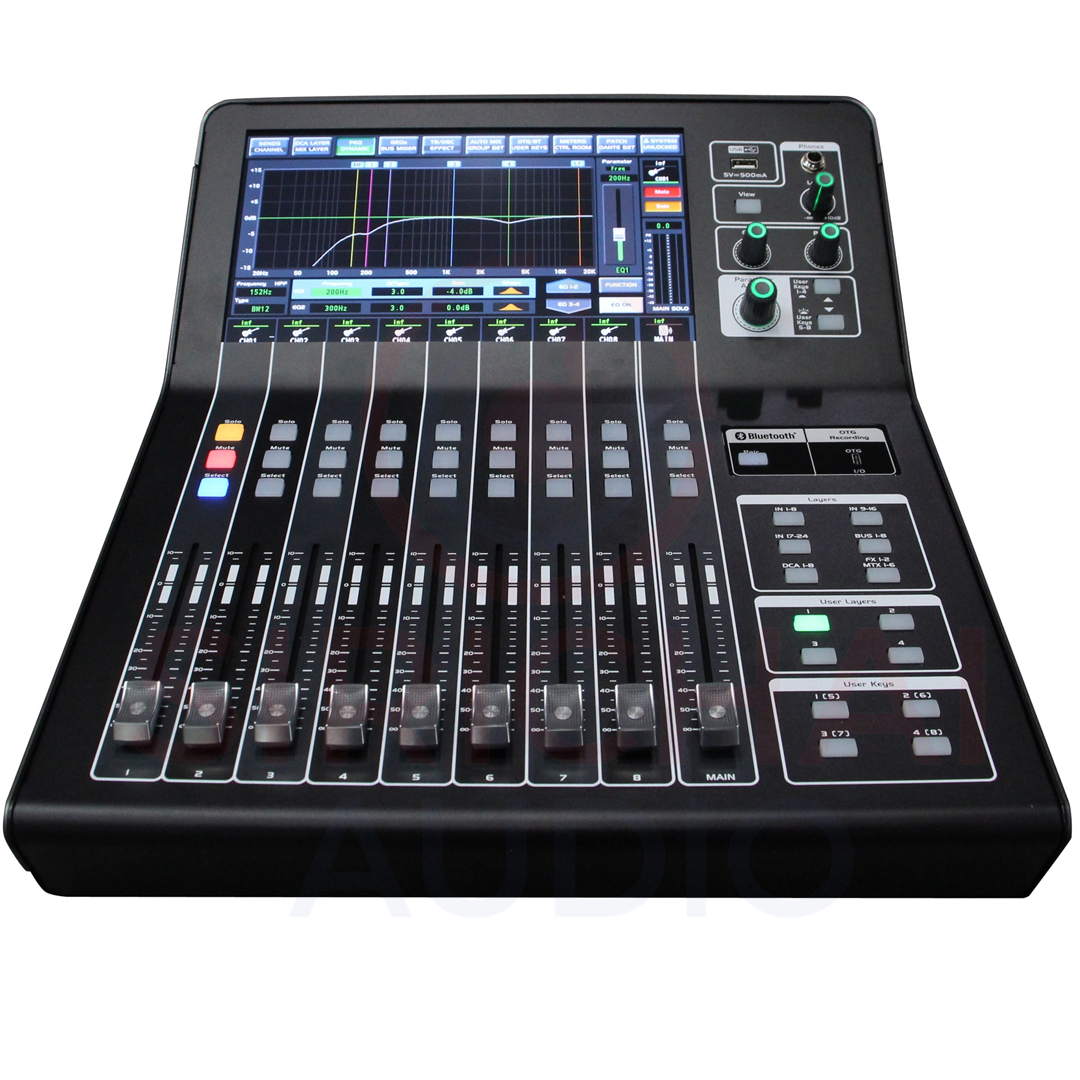

Physical Control Surface
9 x Precision Motorized 100mm Faders (8 for CH Layers, 1 for Main Master)
Display Interface
10.1-inch Colorful LCD Touch Screen for real-time graphical view & setup
DSP Processing Capacity
Up to 24 DSP Processing Channels
Channel Dynamics & EQ
Digital Noise Gate, Digital Compressor/Limiter, Digital 4-band Full Parametric EQ, Ducker, Delay / Latency Adjustment
Advanced Control Tools
• Automatic Mixing (AutoMix with adjustable response time)
• RTA (Real-time Spectrum Analysis Display)
• FBC (Feedback Howl Suppressor with Low/Mid/High speeds and multi-timer release)
Control Grouping System
8 DCA Groups (Digitally Controlled Amplifier) + 8 Mute Groups
Physical Shortcut Keys
6 x Mix Layer Keys, 4 x User Layer Keys (U1-U4), 4 x User Keys, Parameter Next/Prev Keys
Integrated Digital Media
• OTG Port: USB Type-C Audio Play/Record Interface (Provides 5V 2.5A smartphone recharging)
• Bluetooth Play: Equipped with BLE wireless audio playback receiver
Network & Remote Control
1 x Ethernet Network Port (LAN) for remote configuration via iPad or PC App
Built-in FX Processor
12 Factory Presets (Hall, Room, Plate, Delay, Stereo Delay, Karaoke, Flanger, Chorus, DelayRev, Stereo DelayRev, FlangerRev, ChorusRev)
Data & Preset Management
Program, Save, Load, and Channel-Copy via Front USB Port (Firmware updates supported)
Security & System Safety
• Authority Management: Password-protected system lock/unlock mode
• Recall Safe: Protects specified parameters (Preamp, Mute, EQ, Name, etc.) from being overwritten during scene recall
Hardware Expansion Slots
Optional Module Slots supporting DANTE-32S Network Audio Module or USB-32XMultitrack Recording Card
