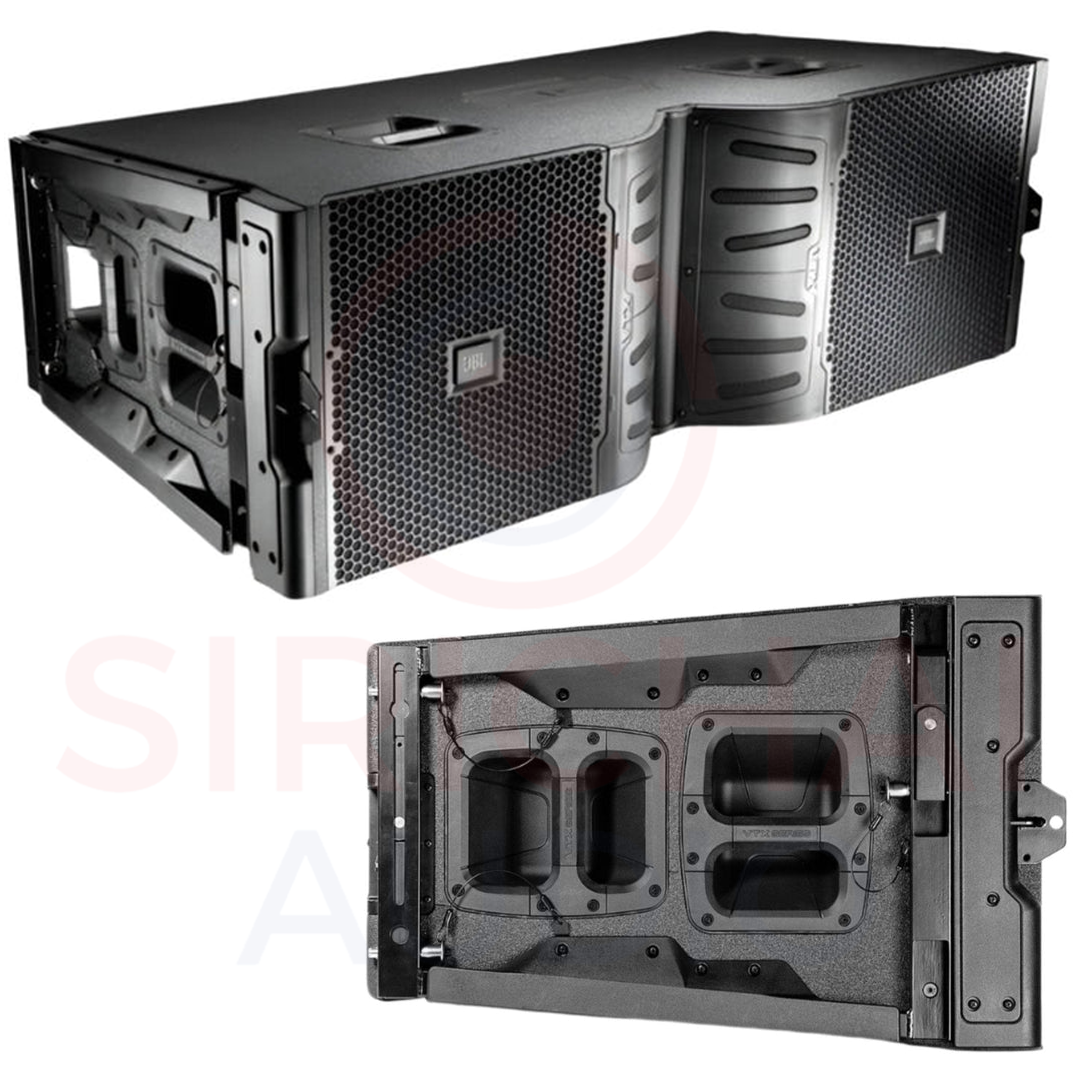

JBL VTX-V25-II Dual 15-Inch Line Array Speaker 3-Way 90-Degree

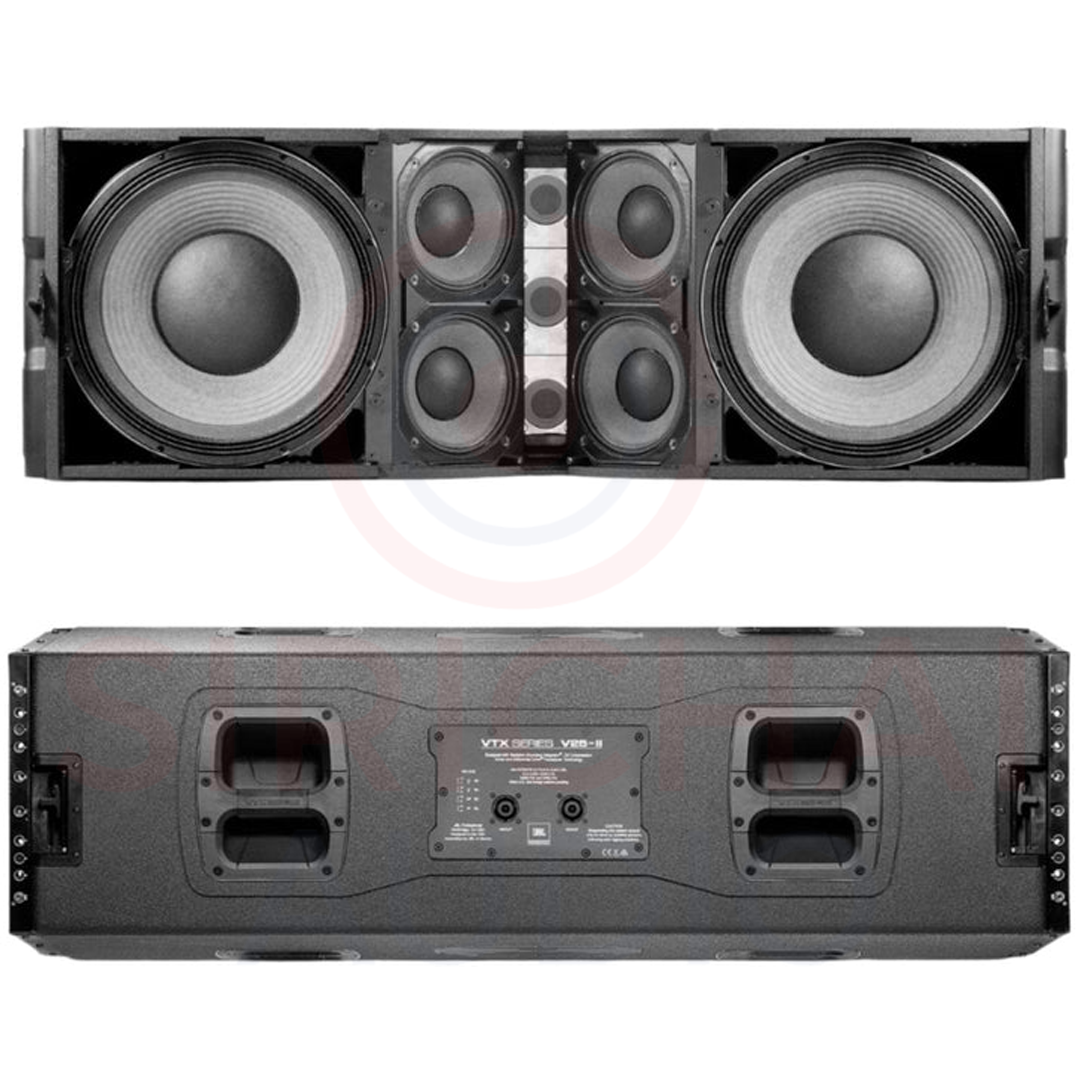

The VTX V25-II is a full size 3-way high-directivity line array element that includes a new 4th generation waveguide which improves long throw performance, wavefront control, and is an improved power match for the Crown IT4x3500HD. The transducer compliment for VTX V25-II is two 2000W 15" Differential Drive® woofers mounted in die cast aluminum baffles, four 8" Differential Drive midrange transducers firing through a patented (RBI Radiation Boundary Integrator®), and three revolutionary D2 Dual-Diaphragm Dual-Voice-Coil Compression Drivers loaded onto the newly designed waveguide. Patented rigging, Crown I-Tech HD amplification with BSS ® OmniDriveHD V5 Processing, and JBL HiQnet Performance Manager™ configuration and control software complete the system package.

Features:
New 4th Generation HF Waveguide technology
Revolutionary D2 Dual Diaphragm, Dual Voice Coil Compression Driver
JBL’s patented RBI (Radiation Boundary Integrator®)
Cardioid-Arrayable Subwoofer Enclosure Models
Aluminum front baffles for reduced cabinet height, weight and improved heat transfer
Patented JBL S.A.F.E.™ Suspension System
V5 Processing with Crown I-Tech HD or VRACK
JBL HiQnet Performance Manager™ System Configuration and Control
Available with either fixed angle tension suspension (V25-II) or compression suspension (V25-II-CS) hardware
Specifications:
System Type: Full Size 3-Way High Directivity Line Array Element with D2 Dual Drivers
Frequency Range: (-10dB): 35Hz - 18 kHz (Preset: VTX V25-II)
Horizontal Coverage: (-6 dB): 90 degrees nominal (200 Hz - 16 kHz)
Maximum Peak Output:LF: 141 dB
MF: 140.5 dB
HF: 149.5 dB
System Amplification: Crown Audio I-Tech HD
Nominal Impedance:LF: 2x 8 ohms
MF: 8 ohms
HF: 8 ohms
LF Driver: (2) JBL 2267H 15-inch woofer
MF Driver: (4) JBL 2168H 8-inch mid-frequency driver
HF Driver: (3) JBL 2430K D2 Dual Diaphragm Dual Voice Coil Compression Driver
Enclosure: Cast aluminum front baffle, Finnish birch plywood, black DuraFlex™ finish; four integral recessed handles
Inter-enclosure Angle: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
Dimensions (H x W x D): 414 mm x 1223 mm x 614 mm (16.3 in x 48.2 in x 24.2 in)
Net Weight (each): 82.6 kg (182 lb)
