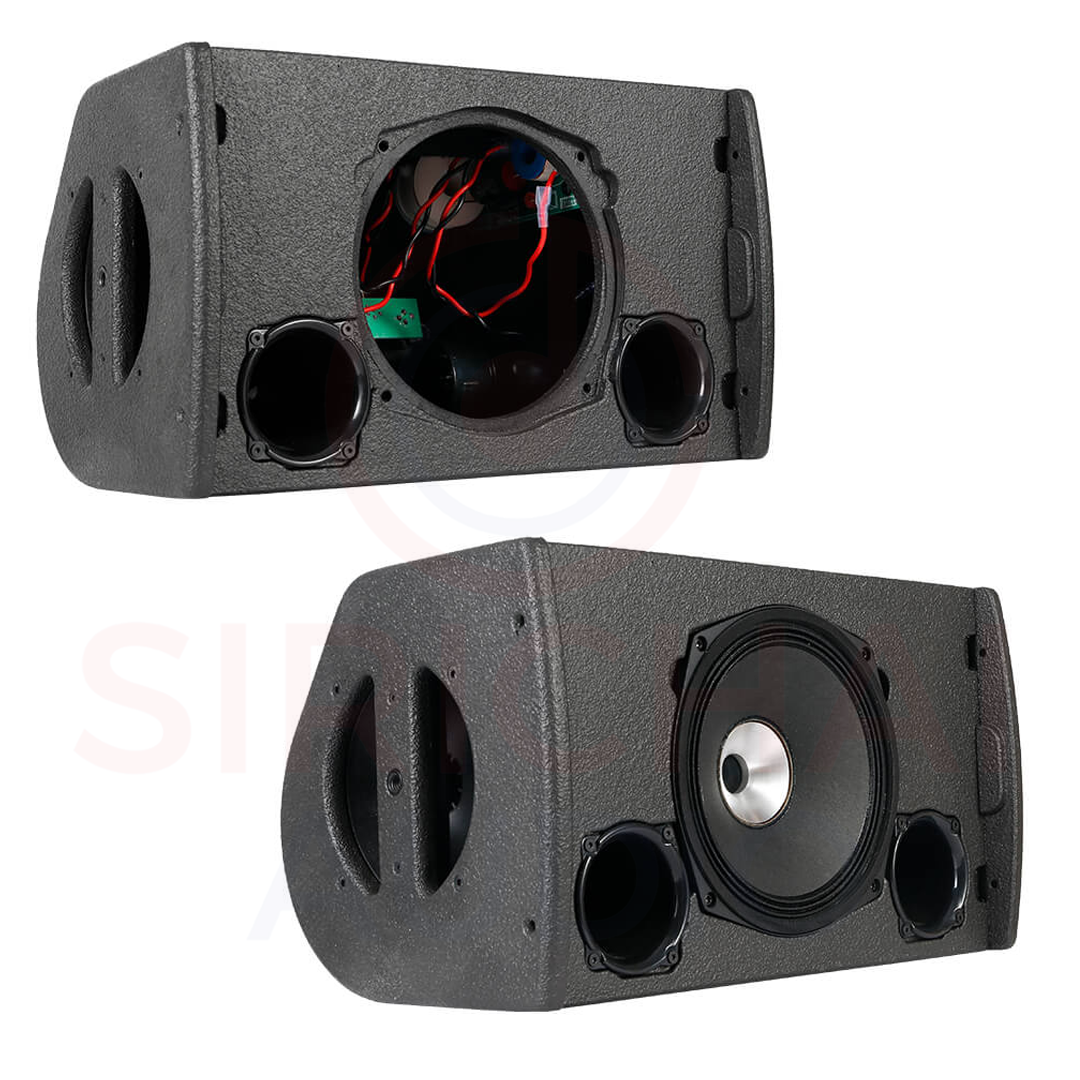

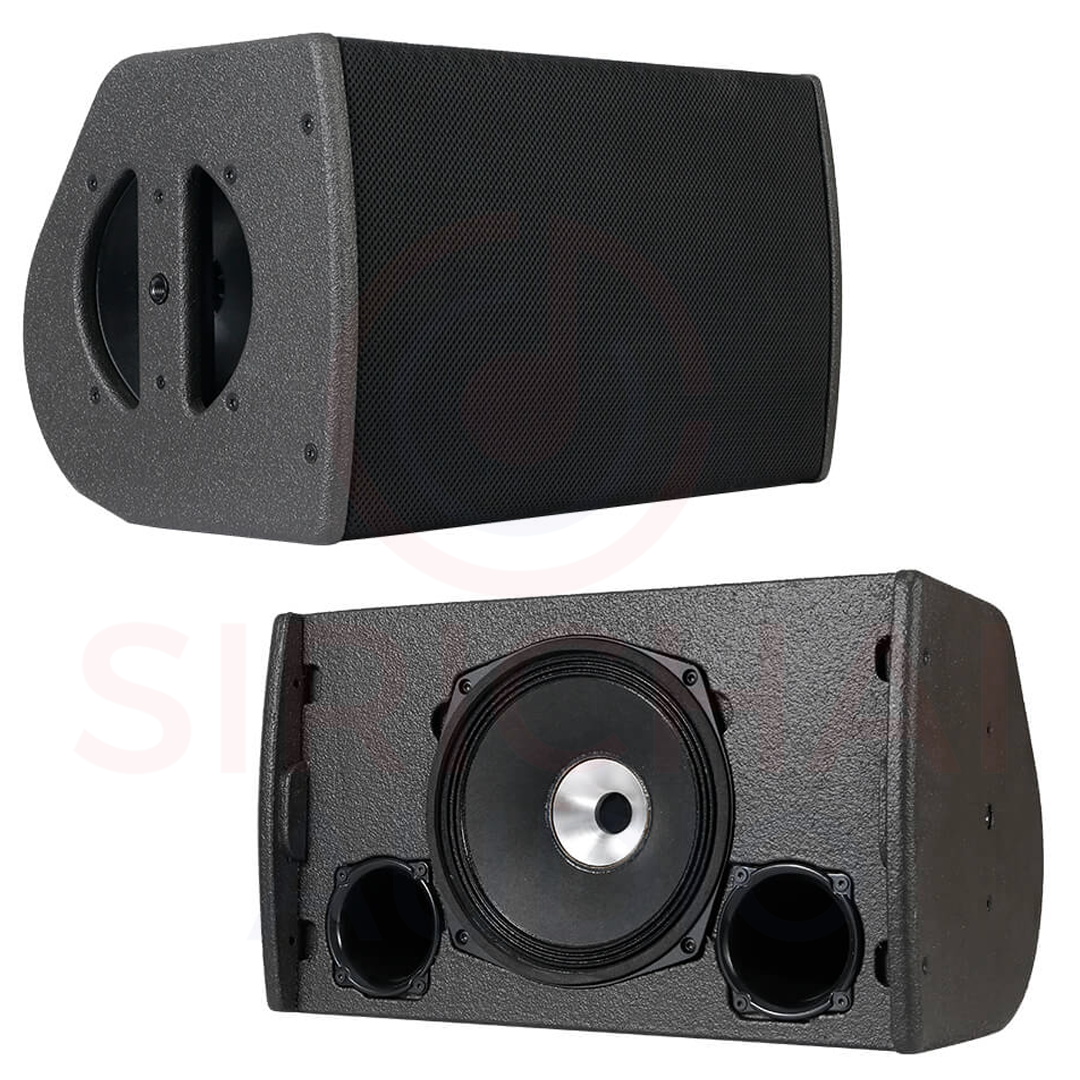

ตู้ลำโพง8นิ้ว ดอกลำโพง2way รุ่น X8
คุณสมบัติสินค้า:
2-way passive, 8"
หมวดหมู่ : ลำโพง , ตู้ลำโพงกลาง-แหลม ,
Share
ตู้ลำโพง8นิ้ว ดอกลำโพง2way รุ่น X8
2-way passive coaxial enclosure
Usable bandwidth (-10 dB):60 Hz – 20 kHz ([X8])
Maximum SPL1:129 dB ([X8])
Nominal directivity (-6 dB):100° axisymmetric
Monitor angle:35°
Transducers LF: 1 × 8″ cone driver
HF: 1 × 1.5″ diaphragm compression driver, neodymium
Acoustical load LF: bass-reflex, L-Vents
HF: conical waveguide
Nominal impedance:8 Ω
Physical specs
Connectors IN: 1 × 4-point speakON
LINK: 1 × 4-point speakON
Rigging and handling 1 handle
DIN580-compatible M8 threaded insert
4 M10 threaded inserts
1 35 mm pole socket
Weight (net):12 kg / 26.5 lb
Cabinet:Premium grade Baltic beech and birch plywood
Front:Coated steel grill
Acoustically neutral 3D fabric
Finish:Dark grey brown Pantone 426 C
pure white RAL 9010
custom RAL code on special order
IP:IP43
