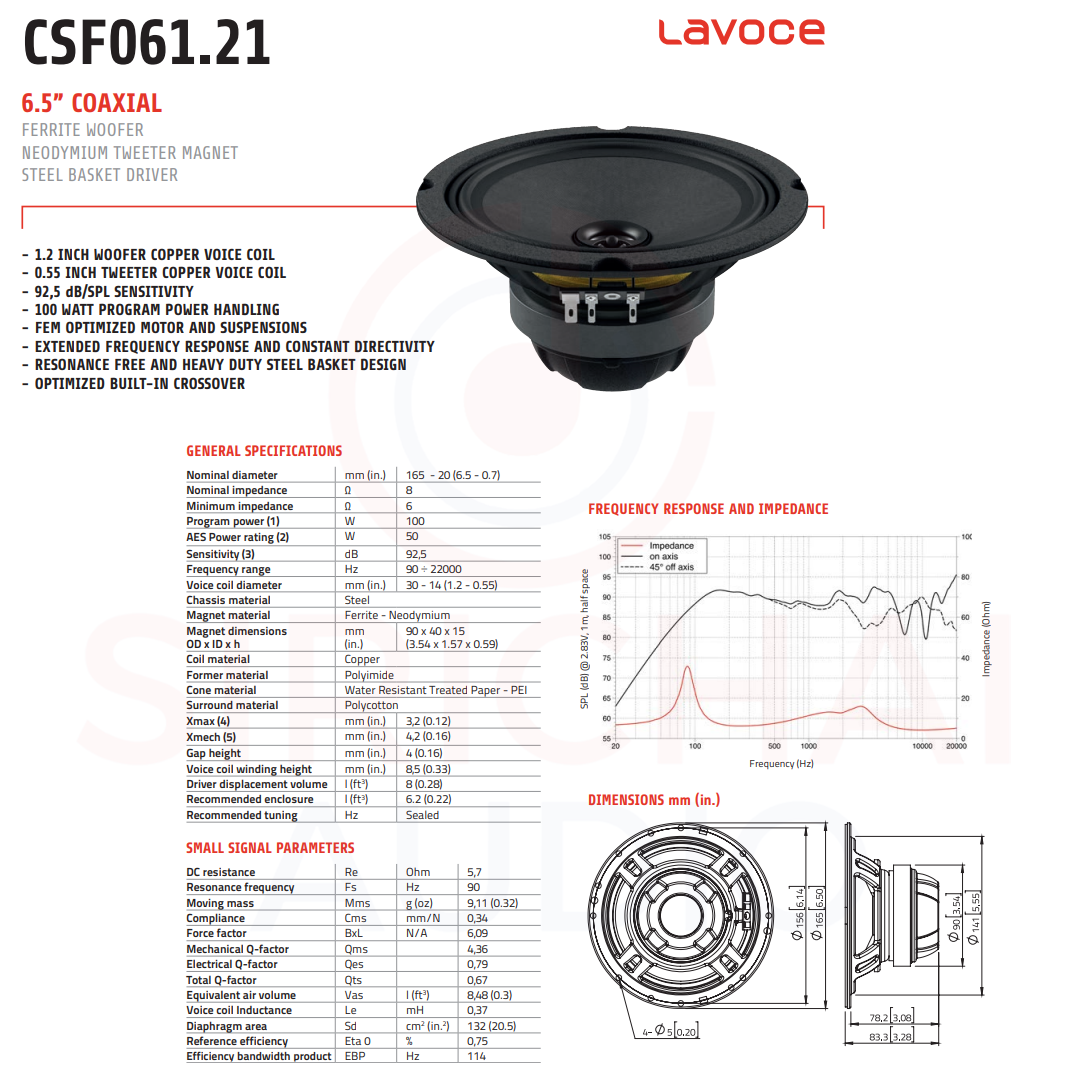

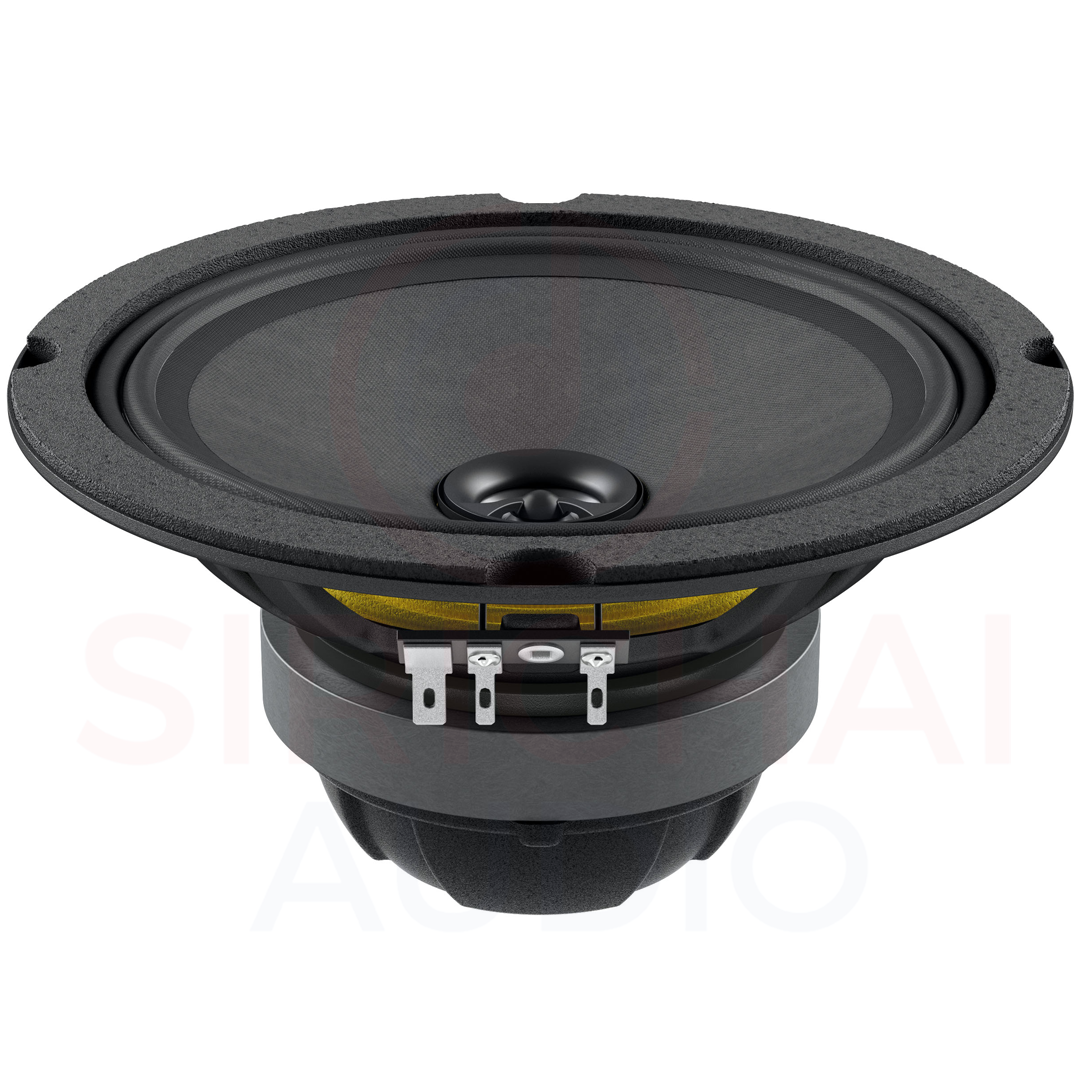

ดอกลำโพง6.5นิ้ว COAXIAL LAVOCE รุ่น CSF061.21

CSF061.21

6.5'' COAXIAL
FERRITE WOOFER
NEODYMIUM TWEETER MAGNET
STEEL BASKET DRIVER

• 1.2 INCH WOOFER COPPER VOICE COIL

  - 0.55 INCH TWEETER COPPER VOICE COIL

  - 92,5 dB/SPL SENSITIVITY

  - 100 WATT PROGRAM POWER HANDLING

  - FEM OPTIMIZED MOTOR AND SUSPENSIONS

  - EXTENDED FREQUENCY RESPONSE AND CONSTANT DIRECTIVITY

  - RESONANCE FREE AND HEAVY DUTY STEEL BASKET DESIGN

  - OPTIMIZED BUILT-IN CROSSOVER

General Specifications LF
Nominal Diameter
165 mm (6.5 in)
Nominal Impedance
8 ohm
Minimum Impedance
6 ohm
Program Power
100 W
AES Power Rating
50 W
Sensitivity
92.5 dB
Frequency Range
90 ÷ 2200 Hz
Voice Coil Diameter
30 mm (1.2 in)
Chassis Material
STEEL
Magnet Material
FERRITE
Magnet Dimensions OD X ID X H
90 x 40 x 15 mm (3.54 x 1.57 x 0.59 in)
Coil Material
COPPER
Former Material
POLYIMIDE
Cone Material
Water Resistant Treated Paper
Surround Material
POLYCOTTON
Xmax
3.2 mm (0.13 in)
Xmech
4.2 mm (0.17 in)
Voice Coil Winding Height
8.5 mm (0.33 in)
Driver Displacement Volume
8 l (0.28 ft³)
Recommended Enclosure
6.2 l (0.22 ft³)
Recommended Tuning
Sealed

https://lavocespeakers.com/product/csf061-21/
