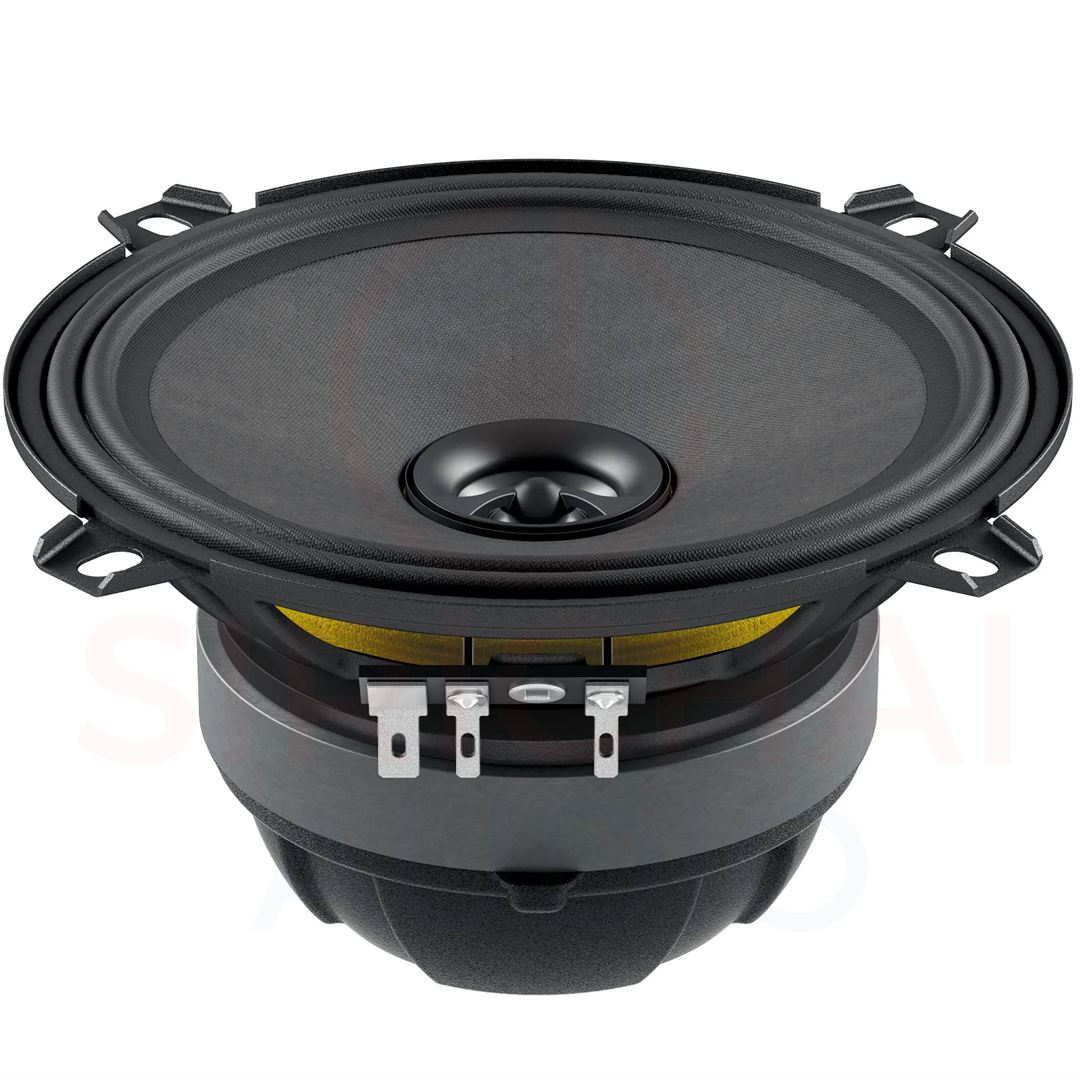

ดอกลำโพง5นิ้ว COAXIAL LAVOCE รุ่น CSF051.21

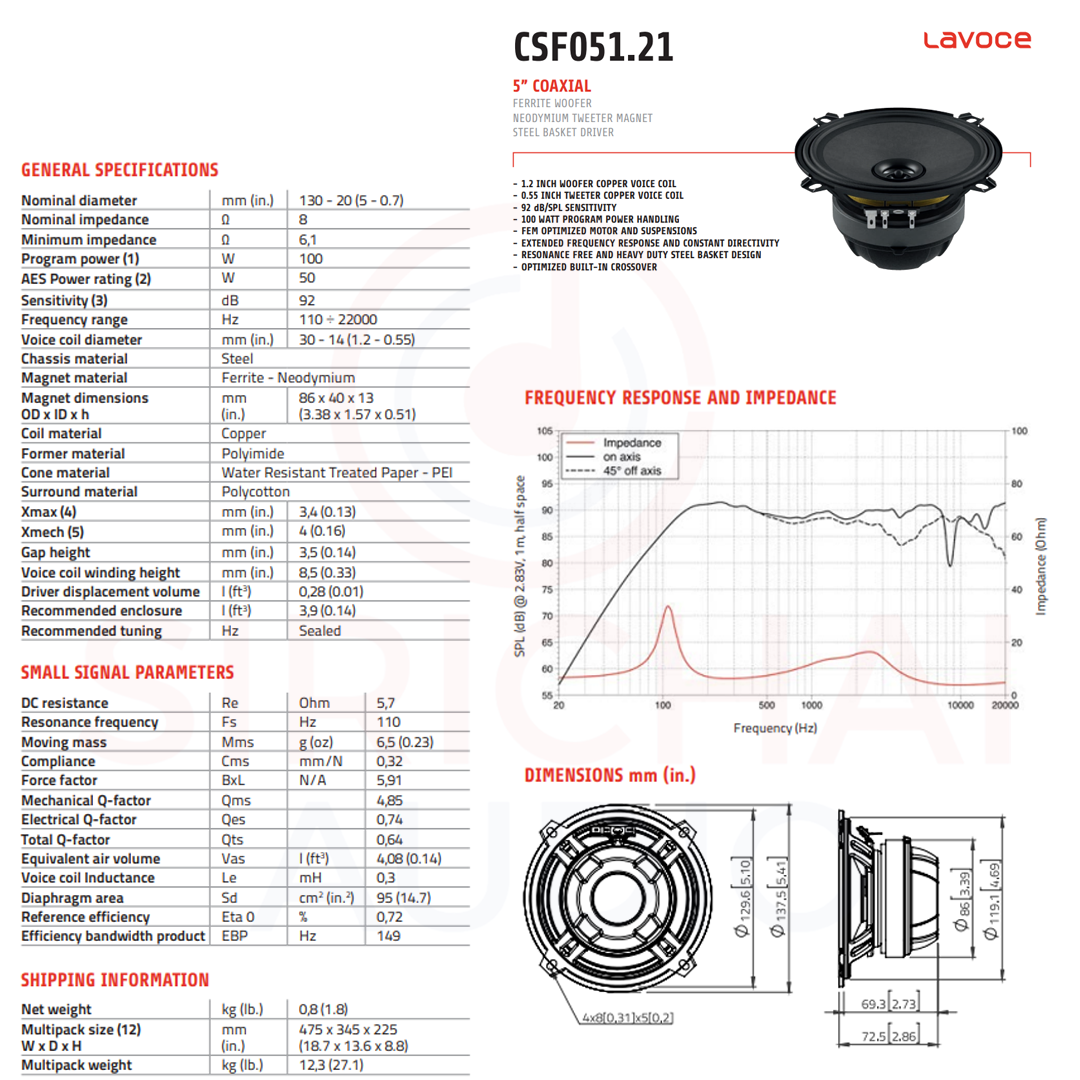

CSF051.21

5'' COAXIAL
FERRITE WOOFER
NEODYMIUM TWEETER MAGNET
STEEL BASKET DRIVER

• 1.2 INCH WOOFER COPPER VOICE COIL

  - 0.55 INCH TWEETER COPPER VOICE COIL

  - 92 dB/SPL SENSITIVITY

  - 100 WATT PROGRAM POWER HANDLING

  - FEM OPTIMIZED MOTOR AND SUSPENSIONS

  - EXTENDED FREQUENCY RESPONSE AND CONSTANT DIRECTIVITY

  - RESONANCE FREE AND HEAVY DUTY STEEL BASKET DESIGN

  - OPTIMIZED BUILT-IN CROSSOVER

General Specifications LF
Nominal Diameter
130 mm (5 in)
Nominal Impedance
8 ohm
Minimum Impedance
6.1 ohm
Program Power
100 W
AES Power Rating
50 W
Sensitivity
92 dB
Frequency Range
110 ÷ 22000 Hz
Voice Coil Diameter
30 mm (1.2 in)
Chassis Material
STEEL
Magnet Material
FERRITE
Magnet Dimensions OD X ID X H
86 x 40 x 13 mm (3.38 x 1.57 x 0.51 in)
Coil Material
COPPER
Former Material
POLYIMIDE
Cone Material
Water Resistant Treated Paper
Surround Material
POLYCOTTON
Xmax
3.4 mm (0.13 in)
Xmech
4 mm (0.16 in)
Gap Height
3.5 mm (0.14 in)
Voice Coil Winding Height
8.5 mm (0.33 in)
Driver Displacement Volume
0.28 l (0.01 ft³)
Recommended Enclosure
3.9 l (0.14 ft³)
Recommended Tuning
Sealed
